Unlock Wireless Control: Complete IR Transmitter & Receiver Kit for Arduino Smart Home & DIY Projects.

Key Features & Benefits:

📦 Complete Learning Kit: Includes a matched pair of 38KHz IR transmitter and receiver modules. Everything you need to start experimenting with infrared communication in one package – no extra sourcing.

📡 Universal 38KHz Compatibility: Operates at the standard frequency used by most household remotes (TV, AC, DVD). Perfect for learning, decoding, and cloning existing remote signals or creating your own custom commands.

🔋 Long 10-Meter Range & High Sensitivity: The receiver can detect signals from up to 10 meters away, even at an angle, making it suitable for RC car control, smart home actuators, and non-contact switches.

🖥️ Arduino-Friendly Digital Output: The receiver outputs a clean, demodulated digital signal that connects directly to any Arduino digital pin. Simple wiring and powerful libraries (like IRremote) make coding easy.

🌡️ Reliable Across Environments: Designed to operate stably from -25°C to +85°C, ensuring consistent performance in various DIY and prototype applications.

Product Description:
Step into the world of invisible wireless communication. This ready-to-use IR kit is your gateway to adding remote control capabilities to any Arduino project. Whether you want to build a smart lamp controlled by your TV remote, a gesture-based interface, or a custom RC system, this pair of modules provides the essential hardware to send and receive infrared commands.

🚨 Key Usage Notes & Learning Guide:
【UNDERSTANDING THIS IS KEY TO SUCCESS】

LIBRARY & DECODING ARE REQUIRED: The receiver outputs a raw digital waveform, not pre-decoded button values. To understand which button was pressed, you MUST use an Arduino library like IRremote or IRLib to decode the signal. This is a learning process!

LINE-OF-SIGHT & INTERFERENCE: Infrared light requires a relatively clear path. Solid objects will block it. Avoid direct sunlight or other strong IR sources, as they can interfere with the signal.

5V OPERATION FOR OPTIMAL PERFORMANCE: Both modules are optimized for 5V power supply. While they may work at 3.3V, the transmitter strength and receiver sensitivity will be significantly reduced, leading to shorter range.

TRANSMITTER NEEDS CODE TO PULSE: The transmitter LED must be rapidly turned on/off (pulsed) at 38KHz via your Arduino code to send a recognizable signal. It does not emit constant light. Example codes are widely available in libraries.

TEST WITH A KNOWN REMOTE FIRST: For your first project, use a common household remote (TV works great) to test the receiver and decoding library. This confirms your setup is working before you try to send your own signals.

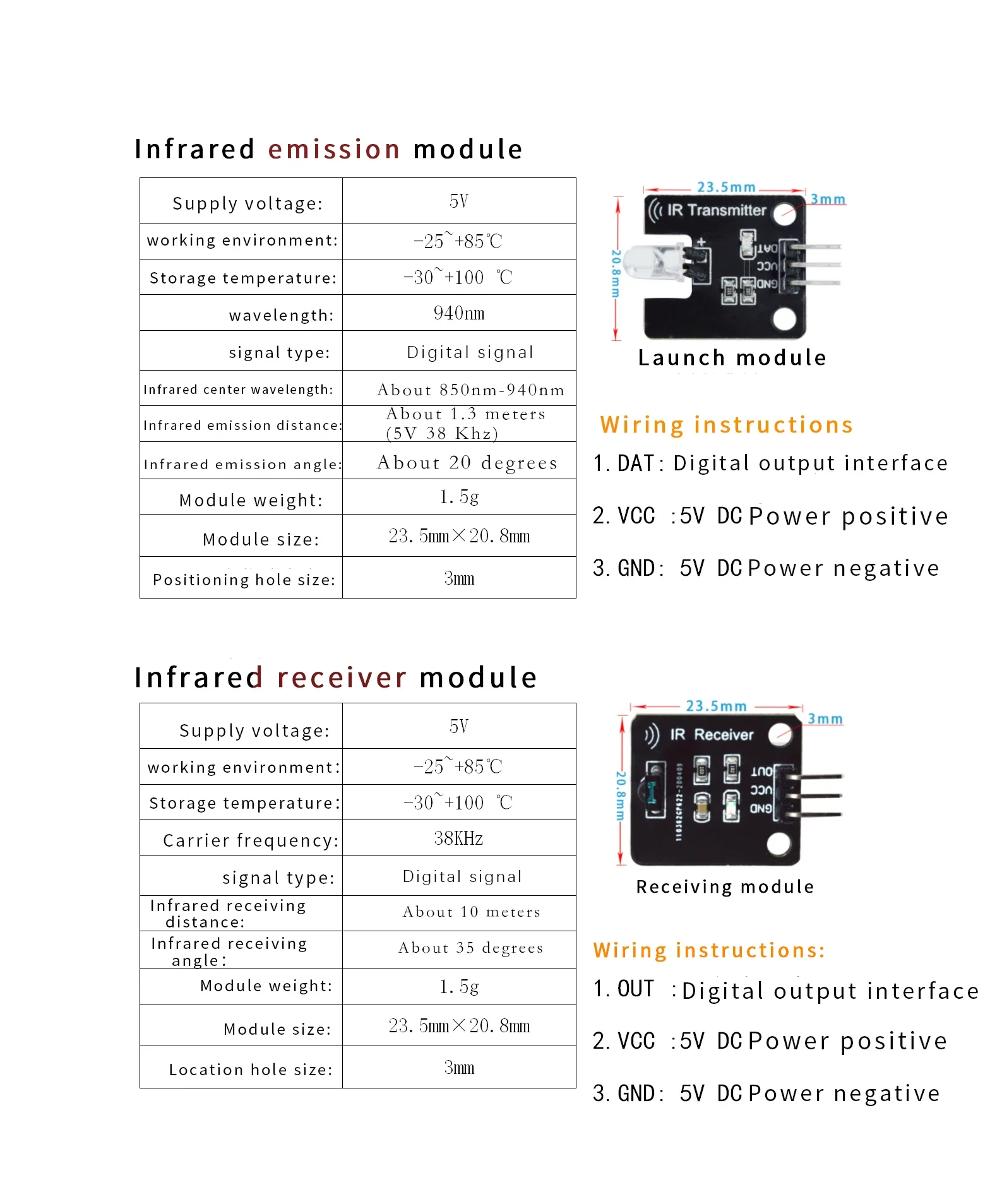

Specifications:

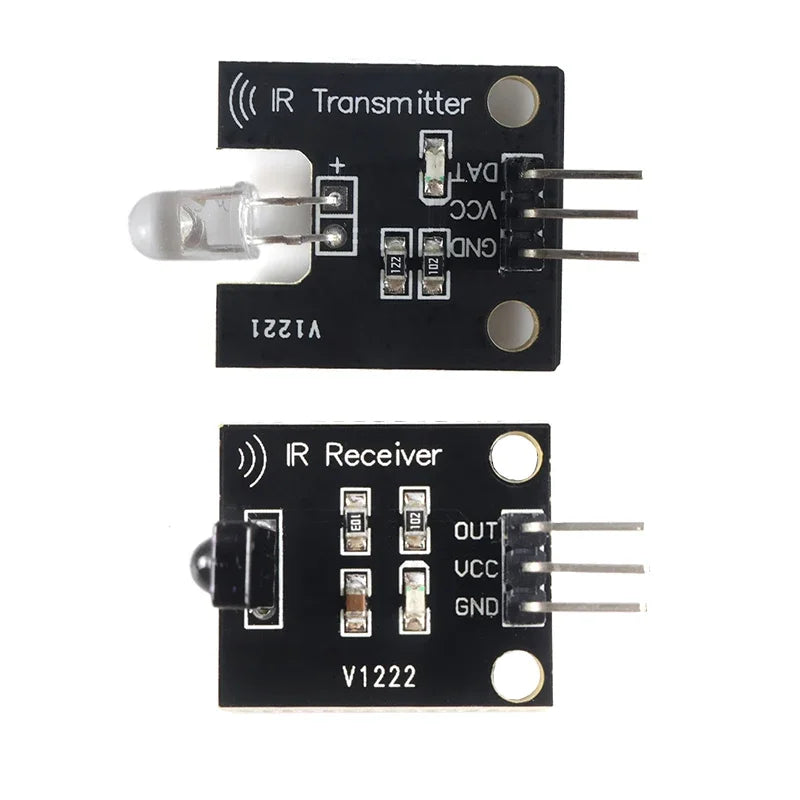

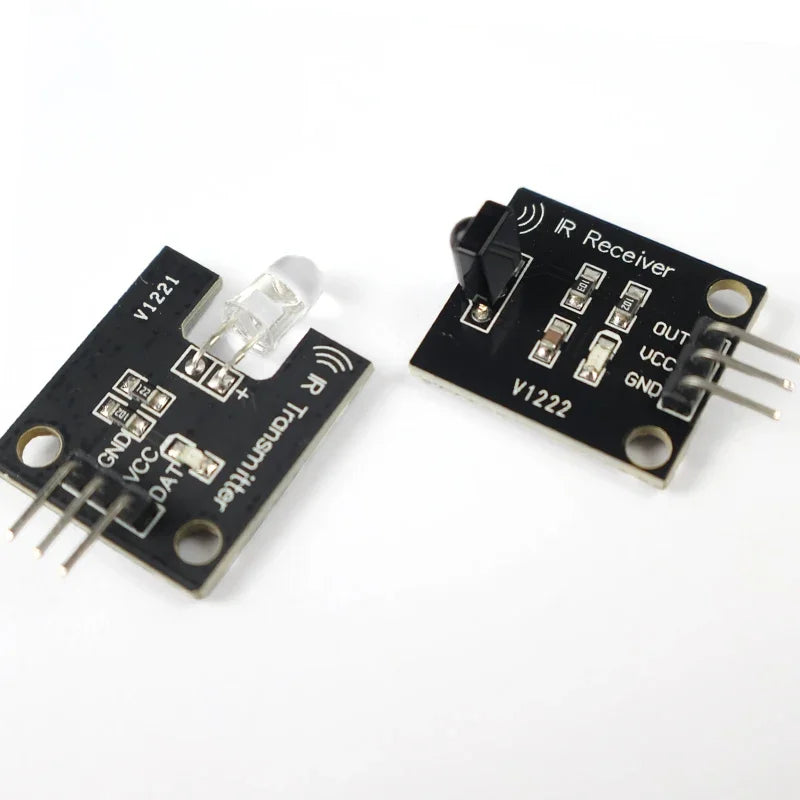

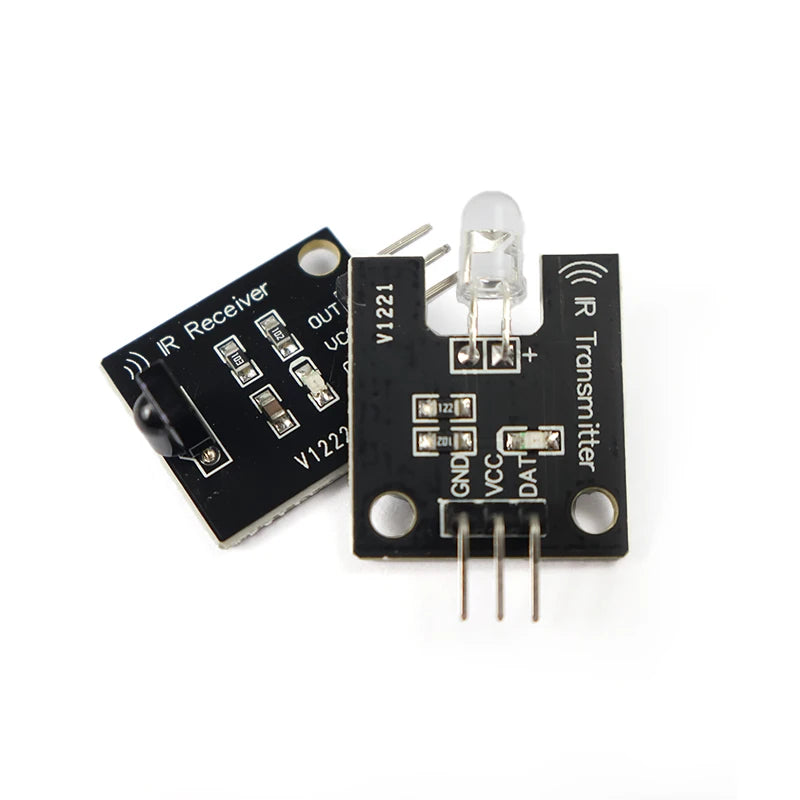

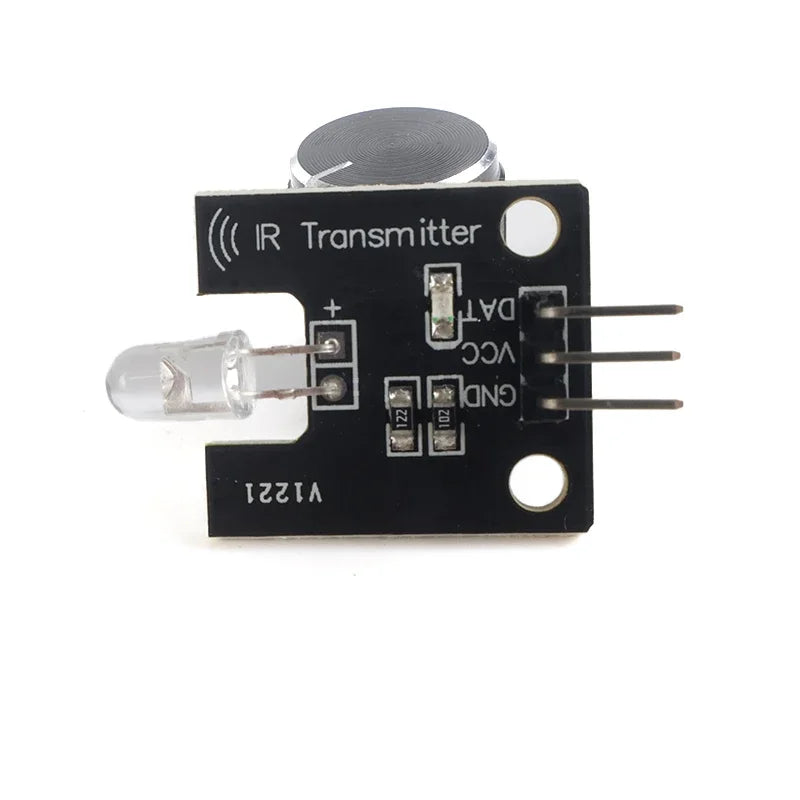

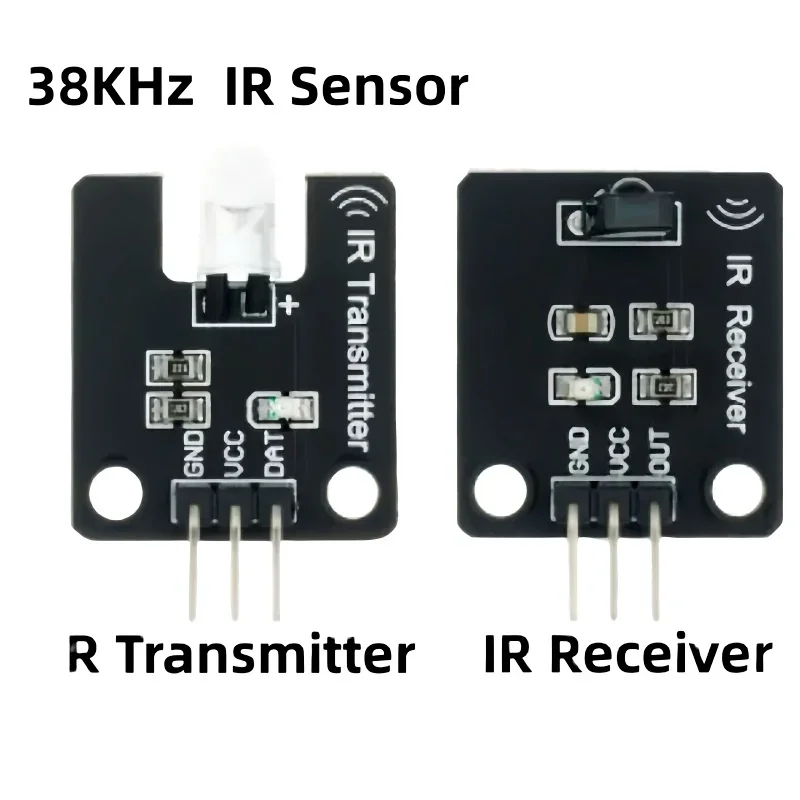

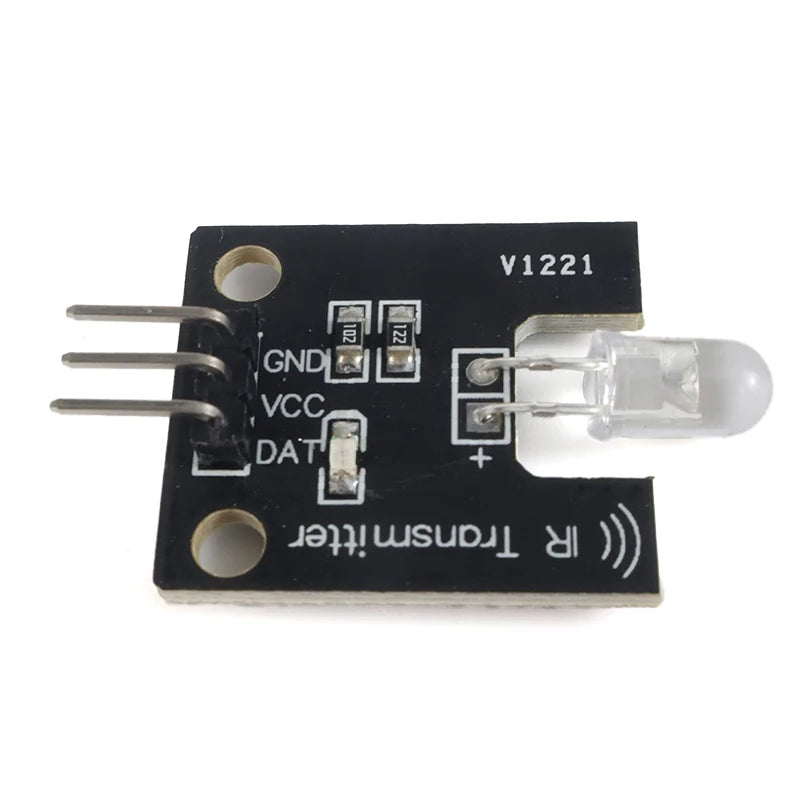

Kit Contents: 1 x IR Transmitter Module, 1 x IR Receiver Module

Supply Voltage: 5V DC (Recommended for both)

Carrier Frequency: 38KHz

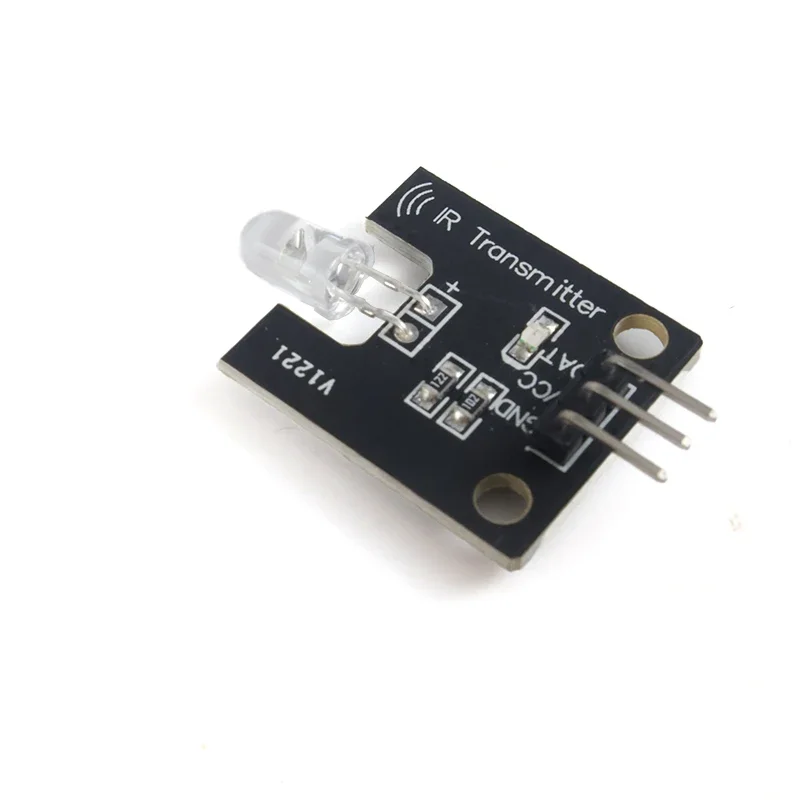

Transmitter: Wavelength: 940nm

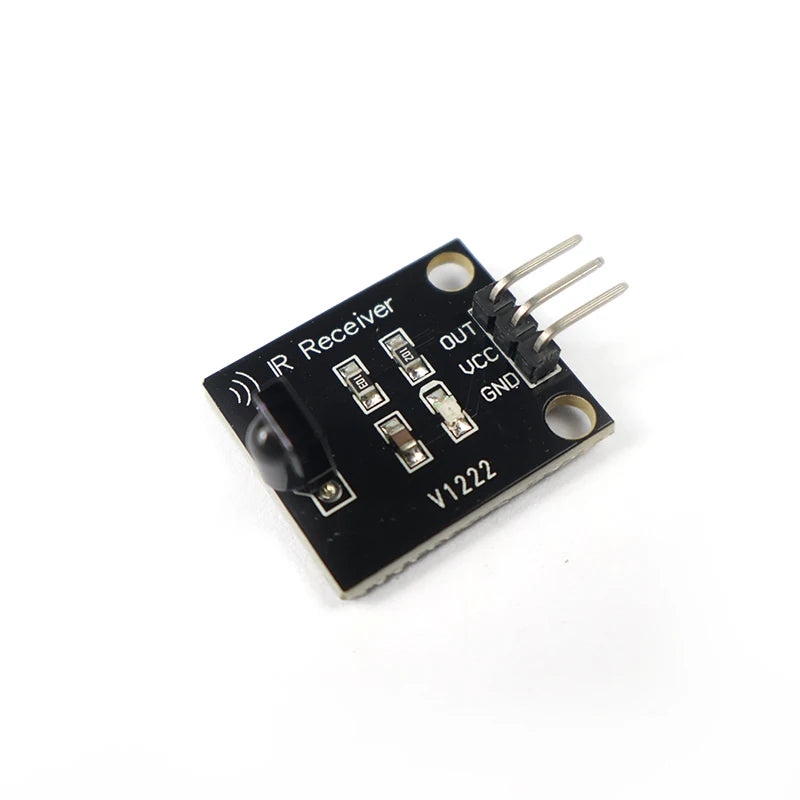

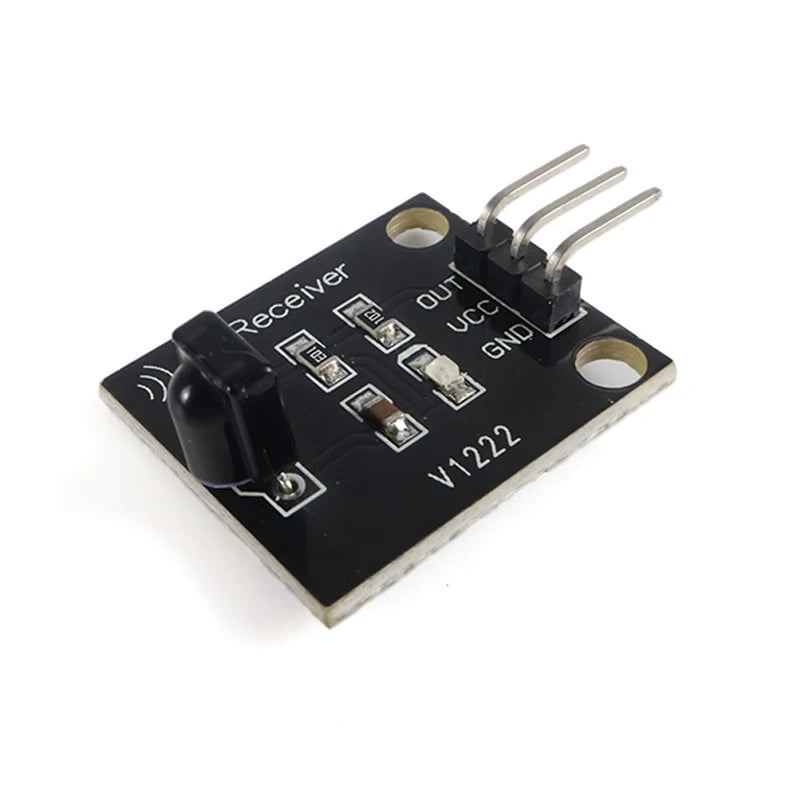

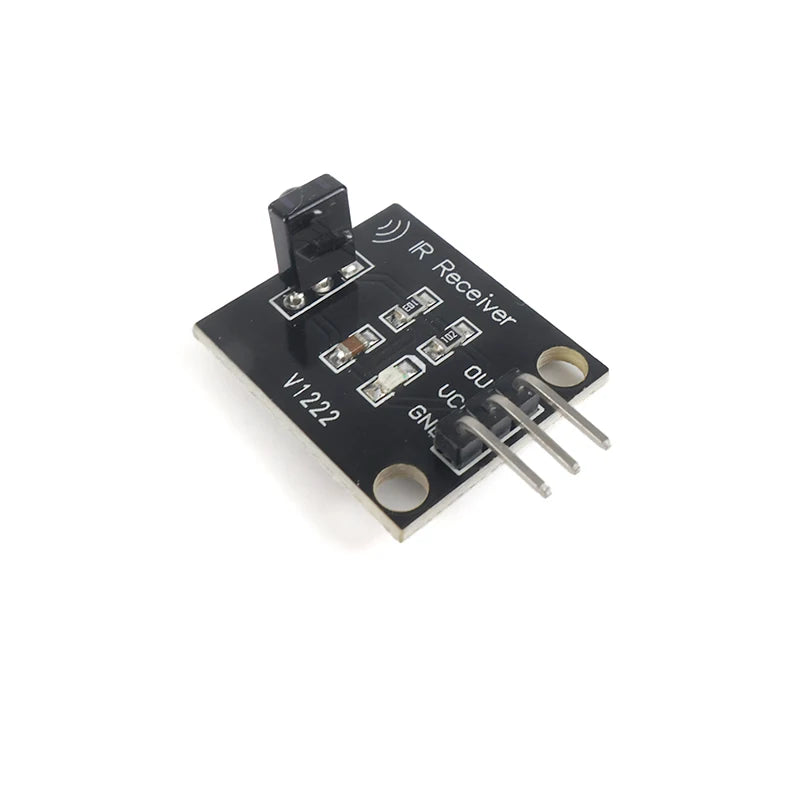

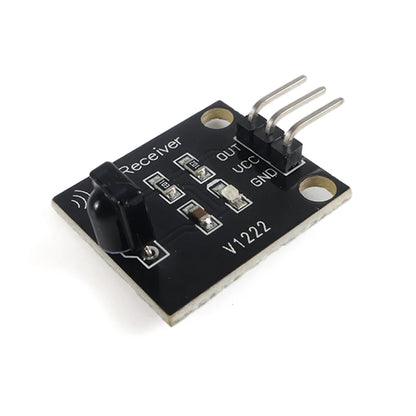

Receiver: Detection Range: Up to 10 meters (Depending on conditions)

Output Signal: Digital (Demodulated TTL)

Operating Temperature: -25°C to +85°C

Module Size: Approx. 23.5mm x 20.8mm (Each)

Package Includes:

1 x IR Transmitter Module

1 x IR Receiver Module
