SPECIFICATIONS

Application: Home Appliance

Brand Name: VOITA

Certificate: CE ROHS fcc

Color: Silver

Efficiency: 93%

Model Number: VT-DD12303

Network: None

OEM: yes

OEM&ODM: Accepatable

Output Current: 3A

Output Type: Single

Output Voltage: 30V

Place of Origin: Guangdong, China

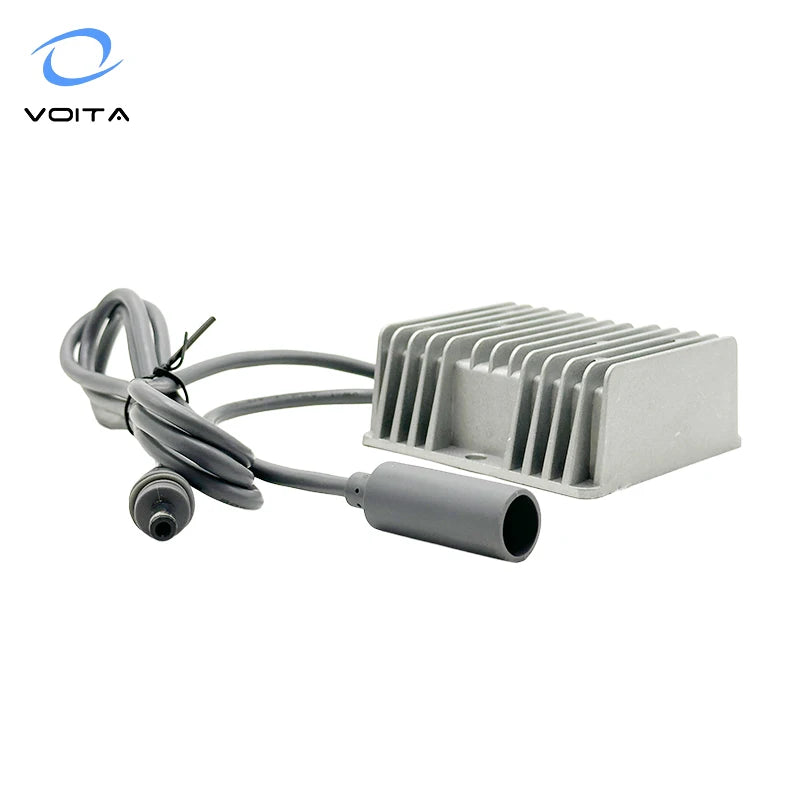

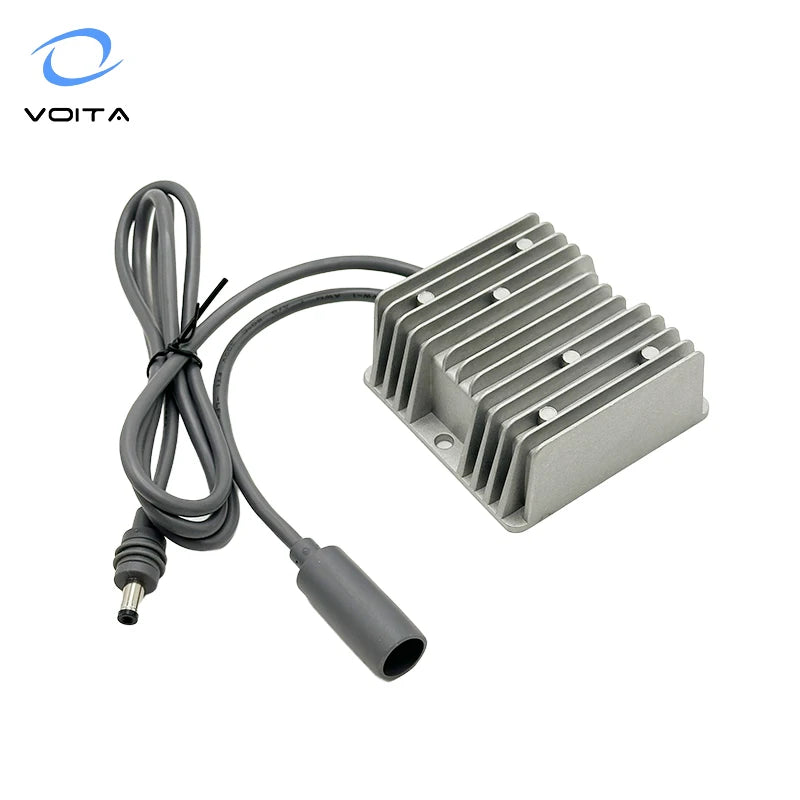

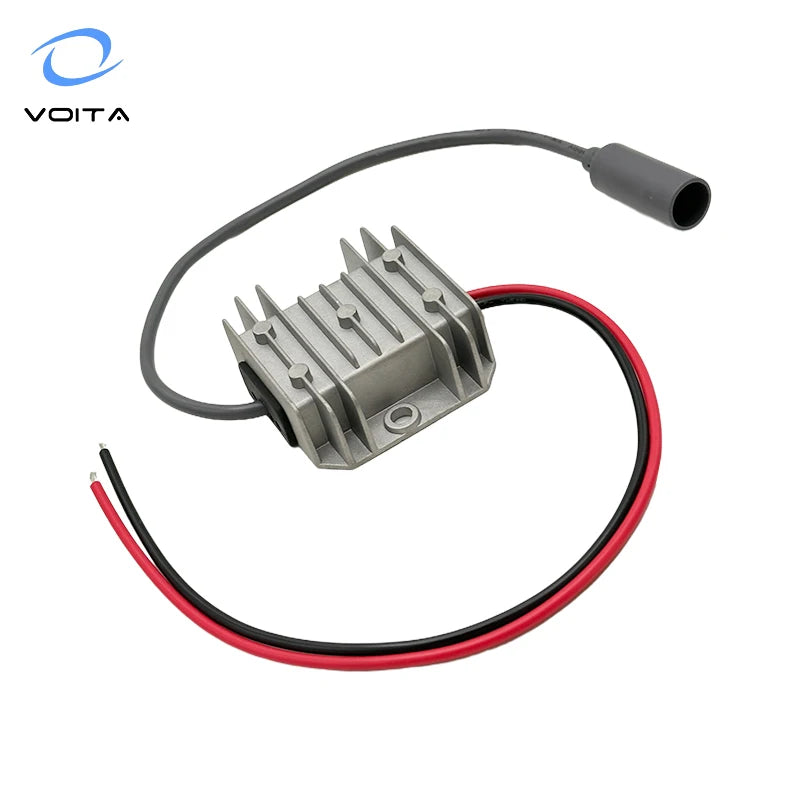

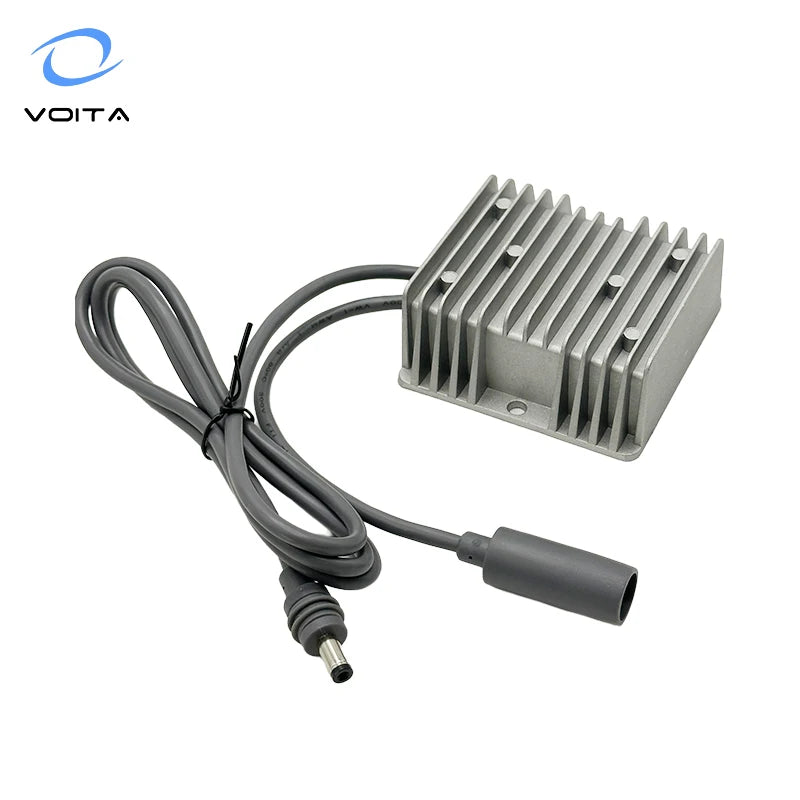

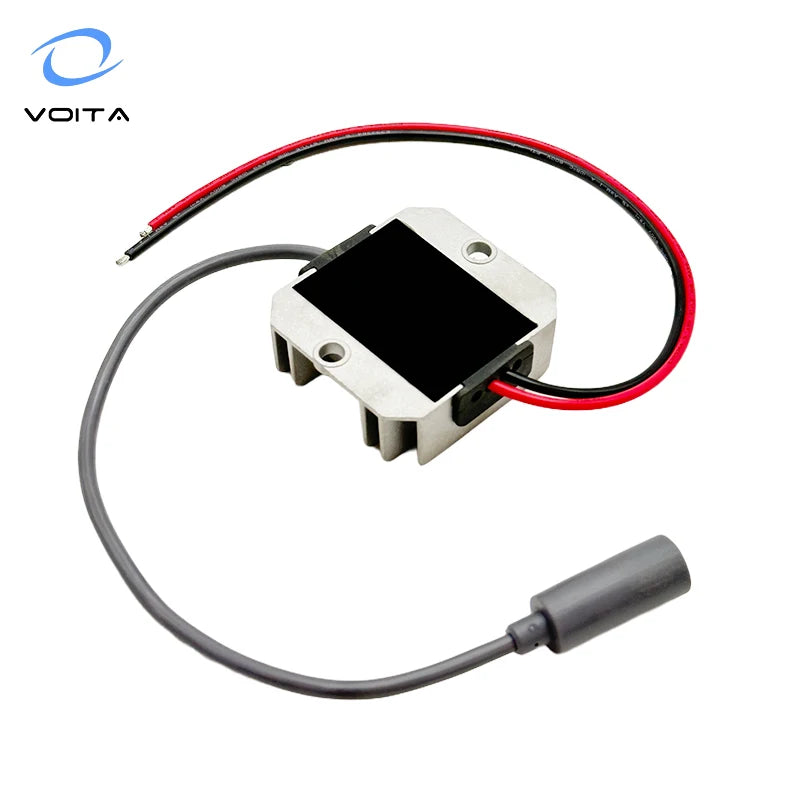

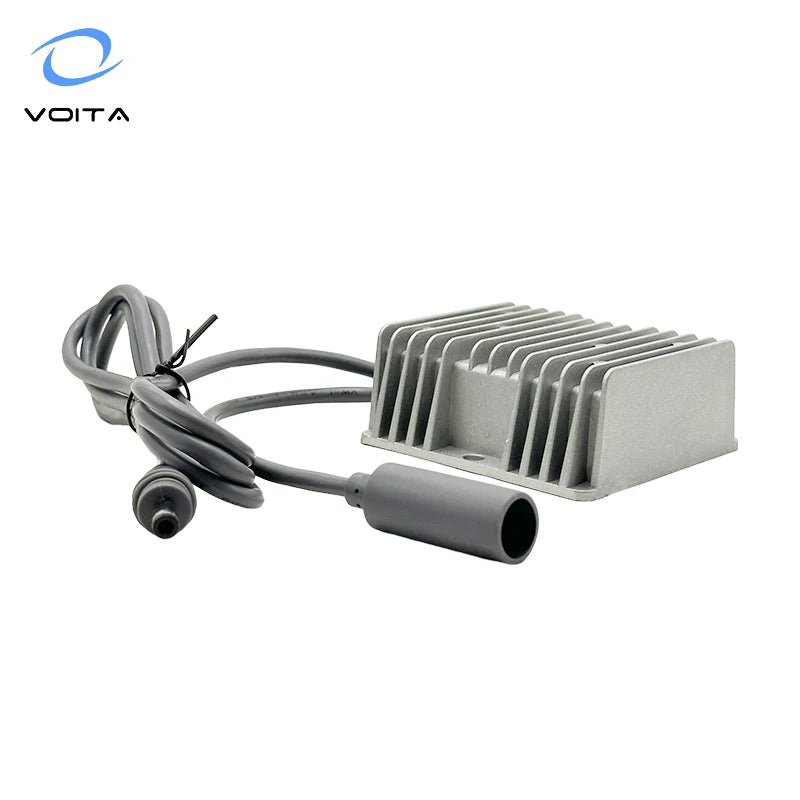

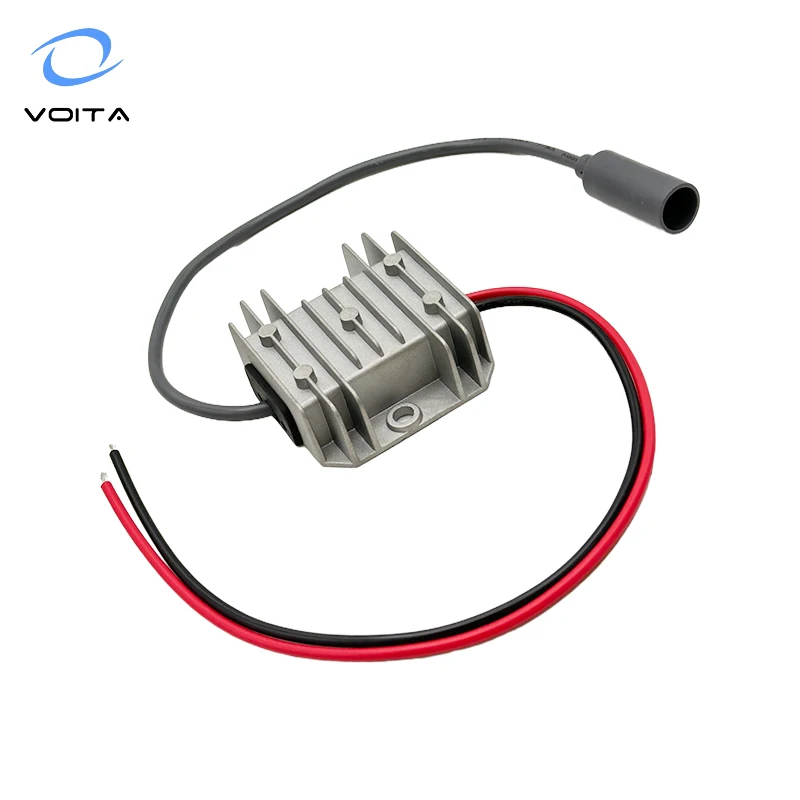

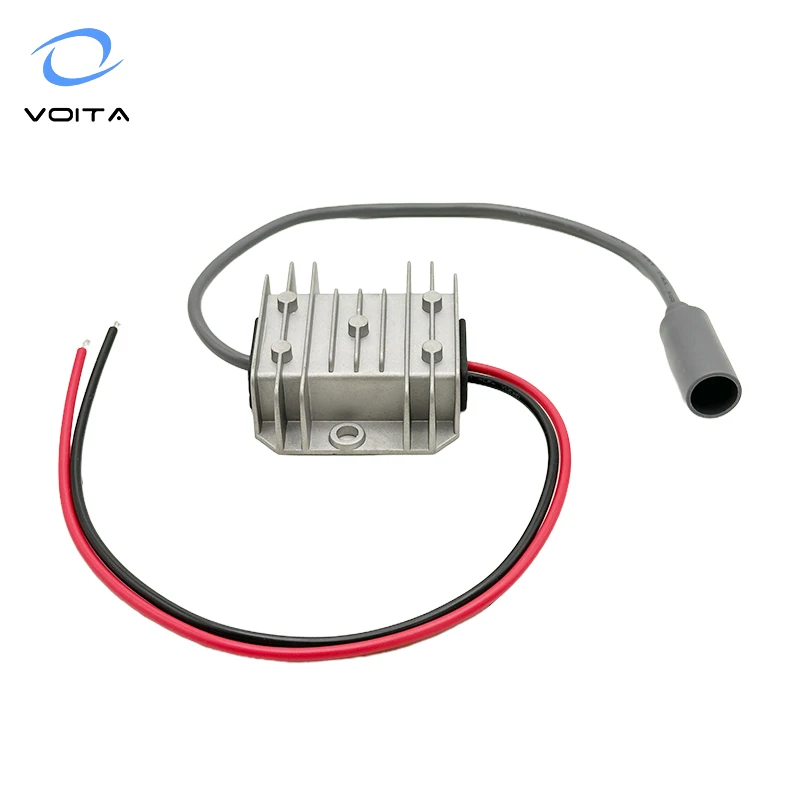

Product name: DC DC Converter

Protection: Short Circuit Overload Overvolt Overtemp

Rated power: 90W

Size: 66*57*22 mm

Type: DC/DC Converters

Warranty: 2 Years

Weight: 0.1kg

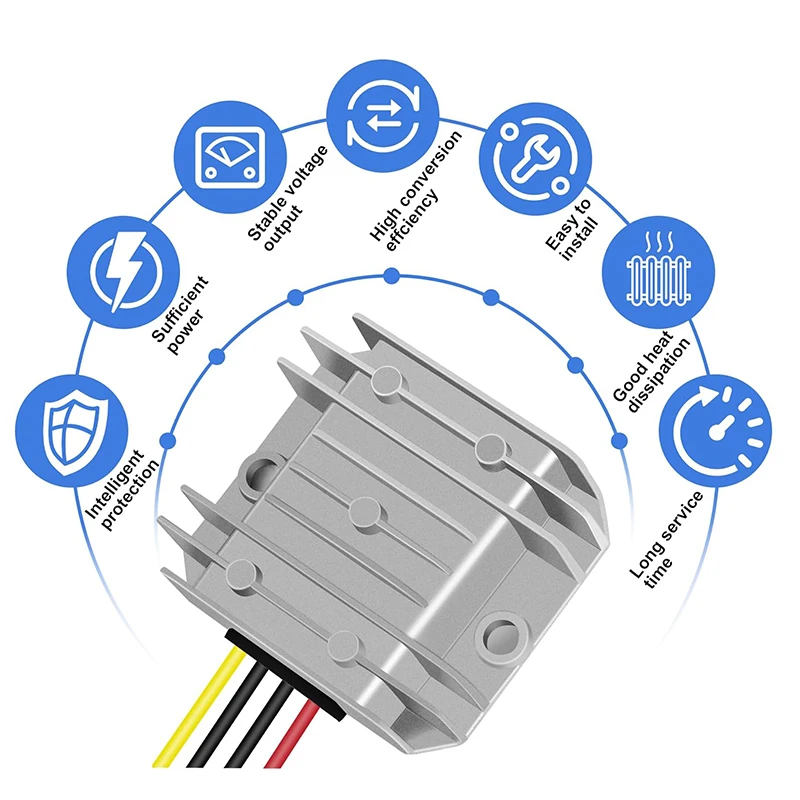

Feature

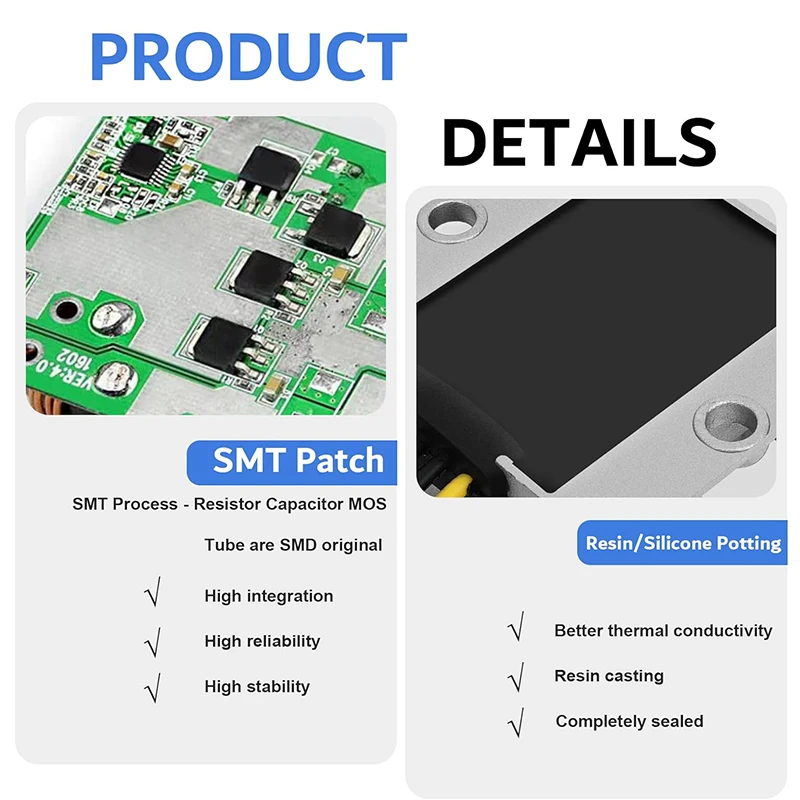

1. Synchronous rectification technology, imported components, conversion efficiency more than 96% 2. Imported internal resistance capacitor filter, withstand high temperature. 3.Flame retardant aluminum shell, Almost no heat generated when using 4. Chip smart protection, anti-overheating, overcurrent protection

Specification

Model	VT-DD12303
Input	Rated voltage	DC 12V
	Voltage range	9-16V
	Efficiency	96% @ 12V input

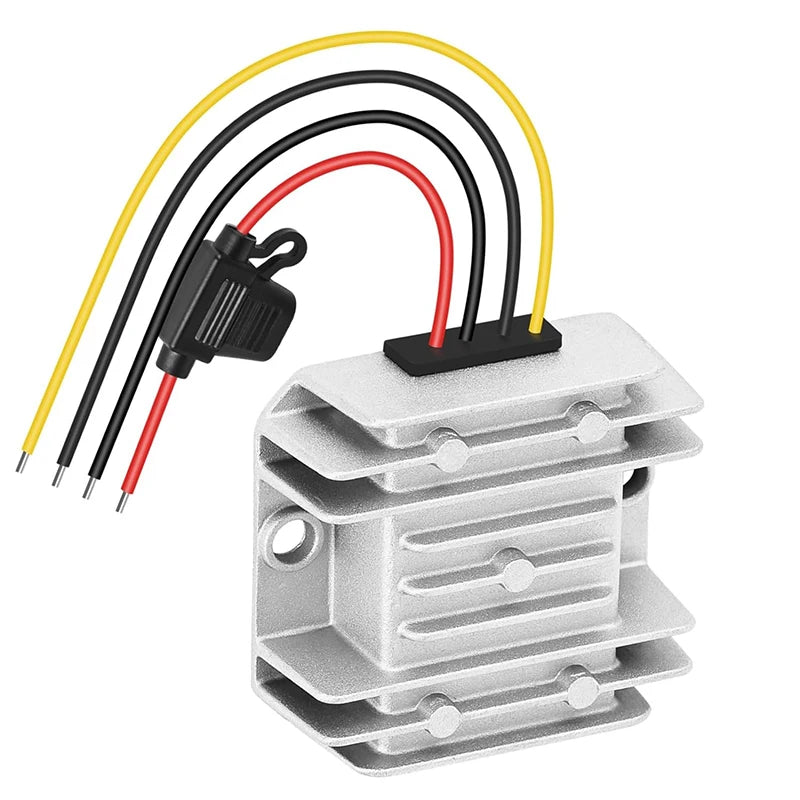

	Positive cable (red)	14 AWG @ 15cm length
	Negative cable (black)	14 AWG @ 15cm length
Output	Voltage	30V
	Max. rated current	3A
	Max. rated power	90W
	Positive cable (yellow)	14 AWG @ 15cm length
	Negative cable (black)	14 AWG @ 15cm length
Environment	Working temperature	-40℃ ~ 80℃
	Storage temperature	-40℃ ~ 80℃
Function	Short circuit protection	YES
	Over current protection	YES
	Waterproof	IP67
	Over temperature protection	YES
	Over voltage protection	YES
Mechanical	Weight	0.1KG
	Size	66*57*22mm
