SPECIFICATIONS

Brand Name: ZUIMI,Fulree

Efficiency: 80%

High-concerned chemical: None

Input Voltage: DC 10~28V

Model Number: F12S30V3.5A4L

Network: None

OEM&ODM: Accepatable

Origin: Mainland China

Output Current: 0A~3.5A Max

Output Power: 0W~105W Max

Output Type: Single

Output Voltage: Stable DC 30V

Phase: Single Phase

Place of Origin: Guangdong, China

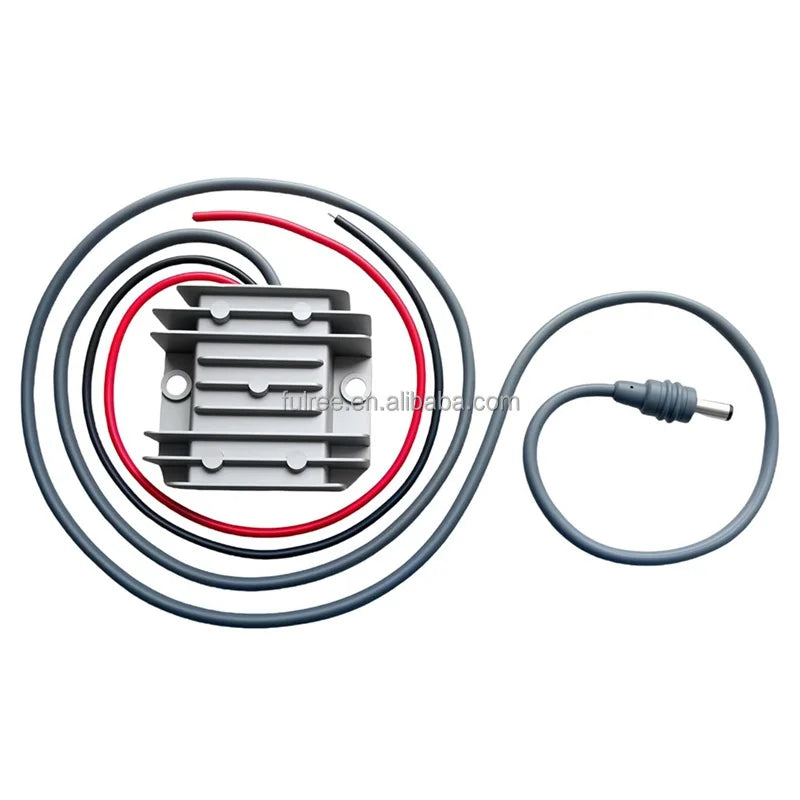

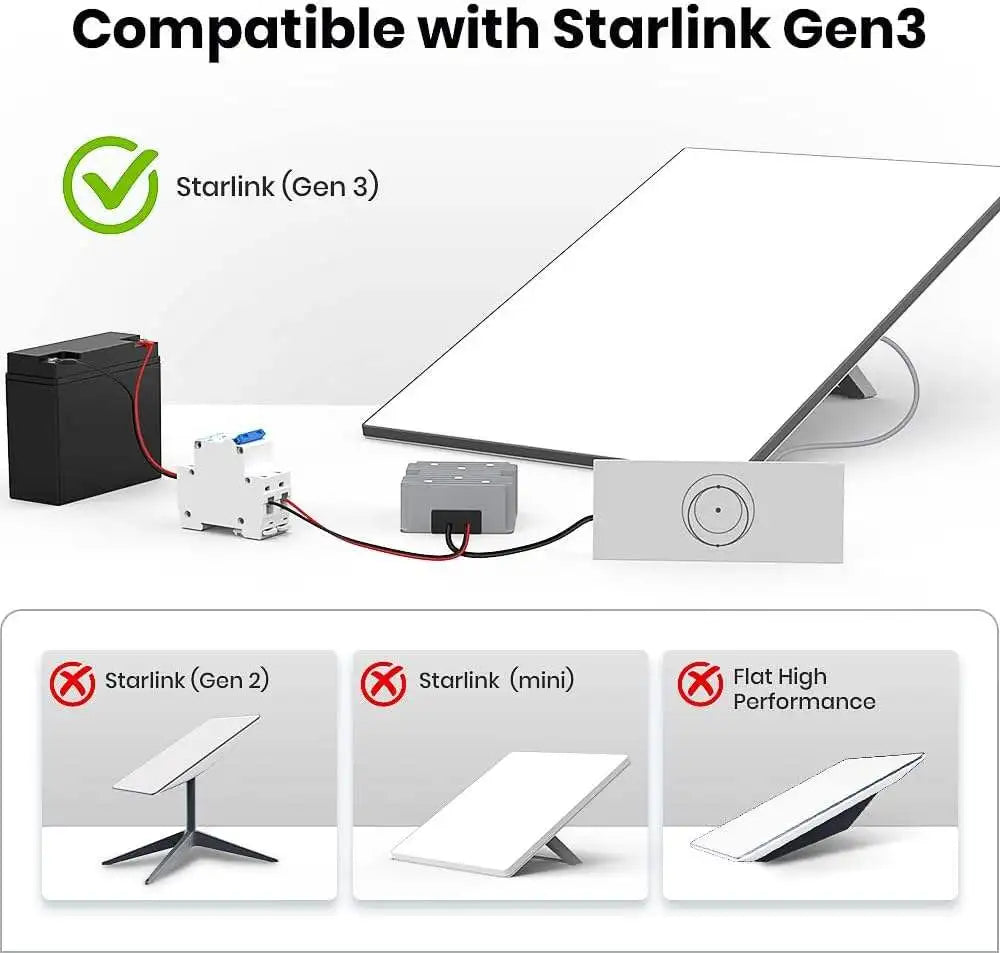

Product name: Starlink Mini 12V to 30V 3.5A Boost Adapter

Size: 64*57*22mm

Type: DC/DC Converters

Warranty: 12 Months

Weight: 110g

Fulree Main Product List

DC DC Step Down Converter	DC DC Step Up Converter	DC DC Step Up and Down Converter	DC DC Converter with USB/DC Plug	AC DC Converter
12V/24V to 5V 1A~100A	5~11V to 12V 1A~20A	12V to 12V 1A~60A	12V to 5V 1A~3A with Multiple USB	AC 12V 24V to DC 5V 1A~10A
10-60V to 5V 1A~30A	12V to 19V 1A~30A	24V to 24V 1A~30A	12V 24V to 5V 1A~3A with Multiple USB	AC 12V to DC 12V 1A~4A
10-90V to 5V 1A~20A	12V to 24V 1A~100A	12V 24V to 13.8V 1A~55A	10V~60V to 5V 1A~3A with Multiple USB	AC 24V to DC 12V 1A~10A
24V to 12V (13.8V) 1A~100A	12V to 28V 1A~100A	12V 24V to 19V 1A~15A	10V~90V to 5V 1A~3A with Multiple USB	AC 24V to DC 24V 1A~6A
36V 48V to 12V (13.8V) 1A~150A	12V to 30V/32V 1A~10A	24V 28V to 28V 1A~30A	12V to 5V 1A~3A with DC 5.5*2.1mm Jack
20~72V to 12V 1A~40A	12V to 36V 1A~30A		10~90V to 5V 1A~3A with DC 5.5*2.1mm Jack
20~90V to 12V 1A~25A	12V 24V to 48V 1A~80A	If you didn't find the product or function you need, please contact with Fulree freely as below!  Contact Person: Vicky Wang Email:fulree_vicky@foxmail.com
20~120V to 12V 1A~20A	12V 24V to 56V/58V 1A~30A
30~72V to 24V 1A~40A	24V to 48V 1A~80A
30~90V to 24V 1A~30A

Product Paramenters

Product Name	DC DC Step Up Boost Converter 12V to 30V 3.5A
Brand	Fulree
Model Number	F12S30V3.5A4L
Module Properties	non-isolated boost module
Rectification	synchronous rectification
Input
Input Voltage	DC 12V
Input Voltage Range	DC 10V~28V
Input Cable Length	standard with 30CM around, customized length is acceptable
Output
Output Voltage	Stable DC 30V
Output Current	3.5A Max for 30V
Output Power	0W~105W Max
Output Cabel Length	standard with 1M around, customized length is acceptable
Product Details

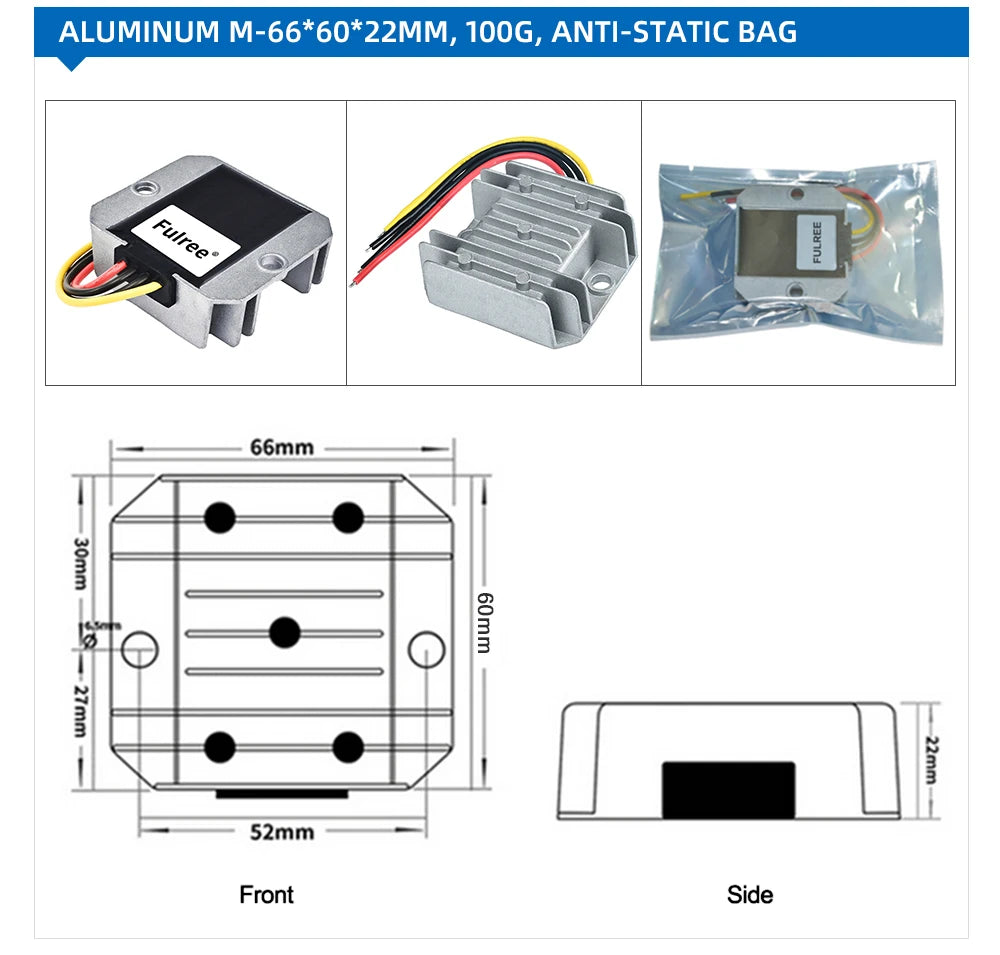

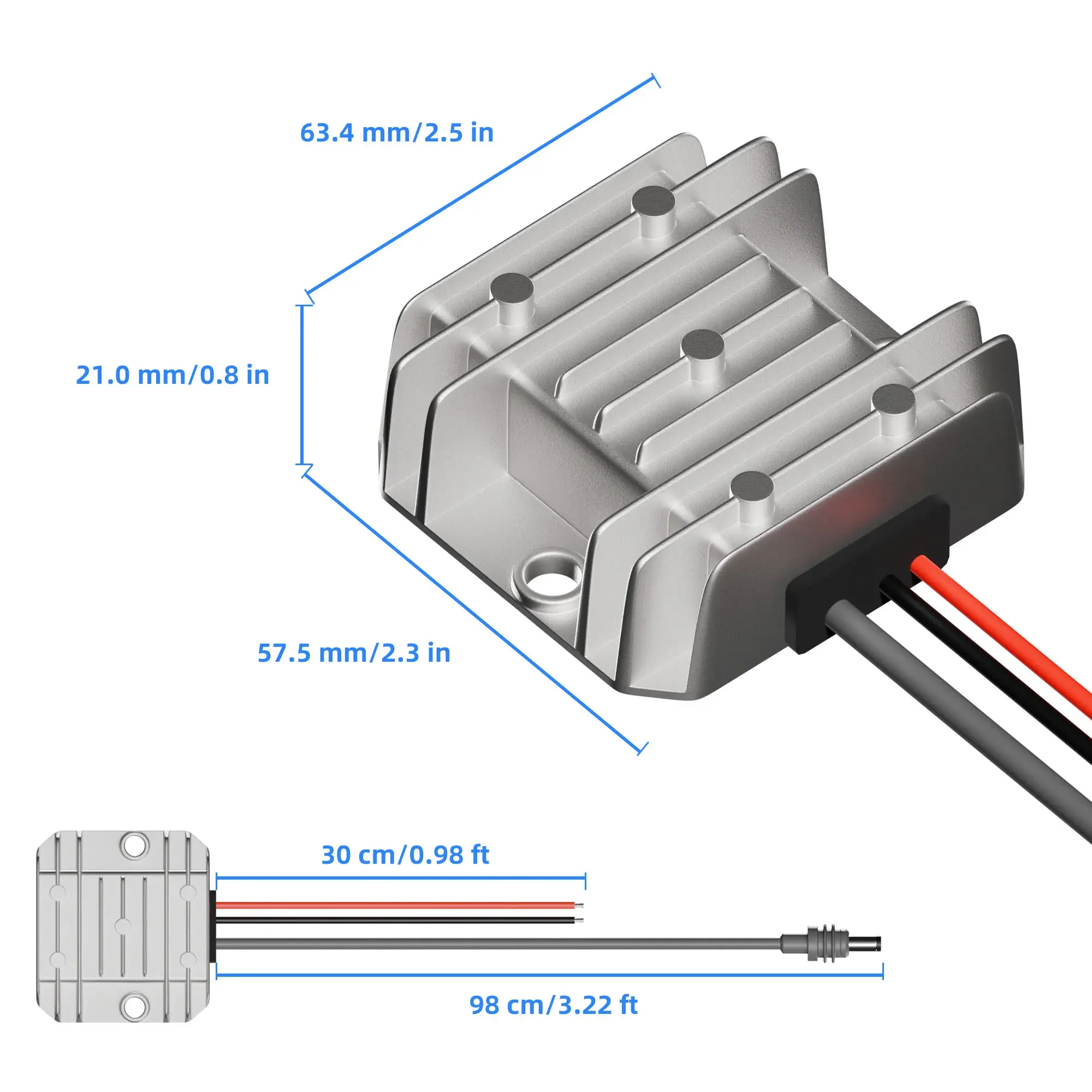

Product Size(L*W*H)	66*60*20mm
Product Weight	200g
Case Material	Aluminium
Conversion Efficiency	90%
Voltage regulation	±3%
Load regulation	± 2%
Ripple (Full load test)	< 100mV
No-load current	<100mA
Working Temperature	-40~80℃

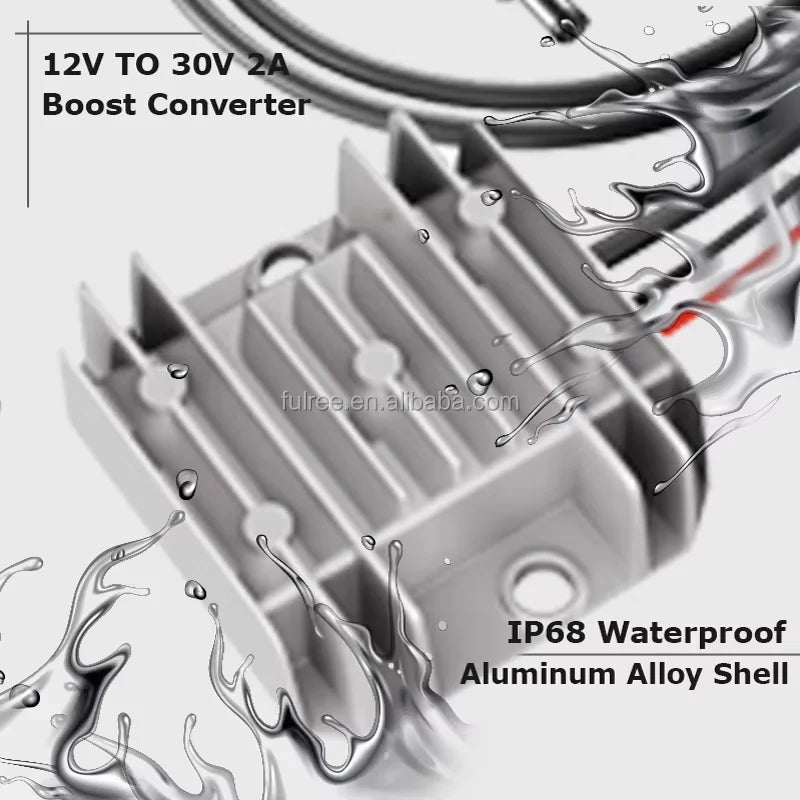

Waterproof Rating	IP68
Protection	Over-current / Overheat / Short-Circuit Protection
Cooling Way	Free Air Convection
Warranty	12 Months
Certification	CE/RoHS
OEM&ODM Service	Custom Brand/Cable Length/Adding Connector are available, please share with us the details for checking!  Contact Person:Vicky Wang           Email:fulree_vicky@foxmail.com

Details Images
