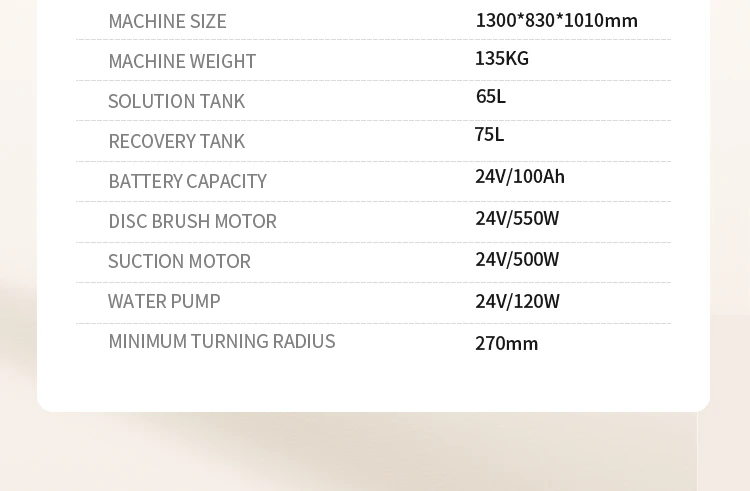

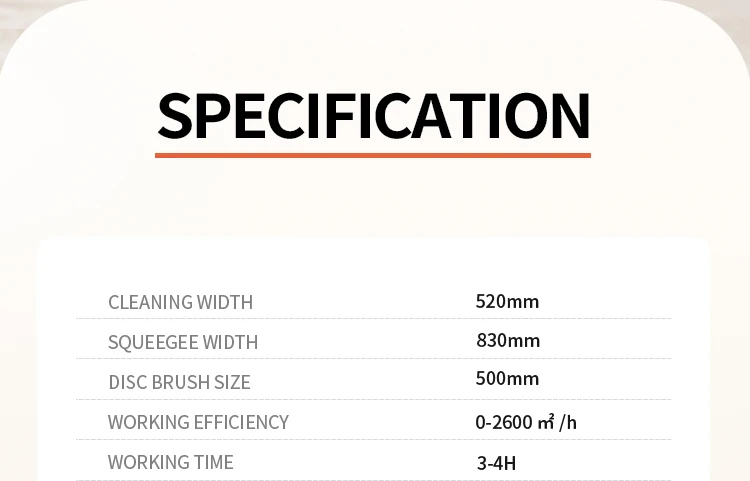

SPECIFICATIONS

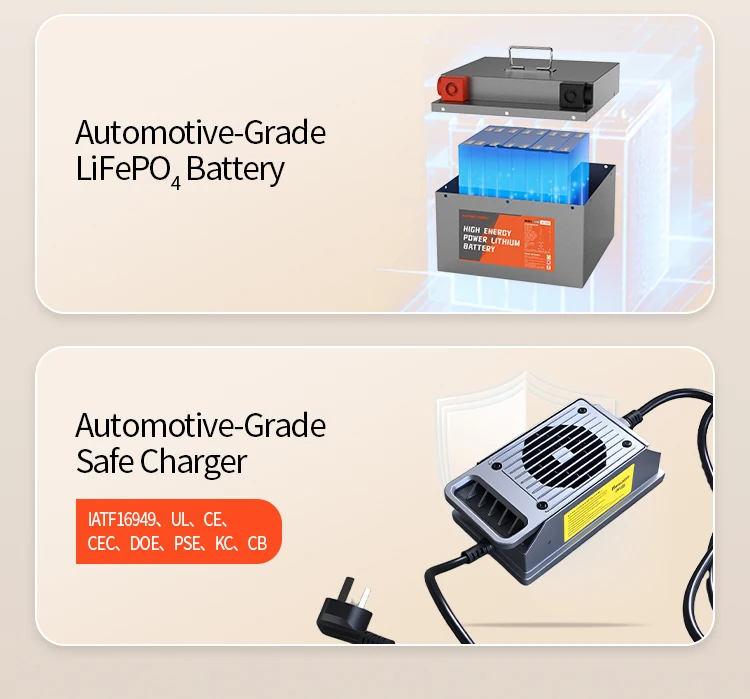

BATTERY: LEAD-ACID /LITHIUM

BATTERY CAPACITY: 24V/100AH

BRUSH MOTOR: 24 V/550 W

BRUSH PLATE DIAMETER: 500 MM

Brand Name: XMSJ

High-concerned chemical: None

Origin: Mainland China

Power (W): 801-1000W

RECOVERING TANK: 73 L

SCRUBBING WIDTH: 520 MM

SOLUTION TANK: 65 L

SQUEEGEE WIDTH: 830 MM

Voltage: 24V

WORKING EFFICIENCY: 0-2600 M²/H

WORKING TIME: 3-4 H

brand name: Relion Craftsman

cleaning process: Cold Water Cleaning

cleaning type: Clean-In-Place (CIP)

condition: New

dimension(l*w*h): 1300*830*1010 MM

fuel: Electric

machine type: Other

material: Plastic

place of origin: Jiangsu, China

power(w): 500

use: cleaning

warranty: 1 Year

weight (kg): 135

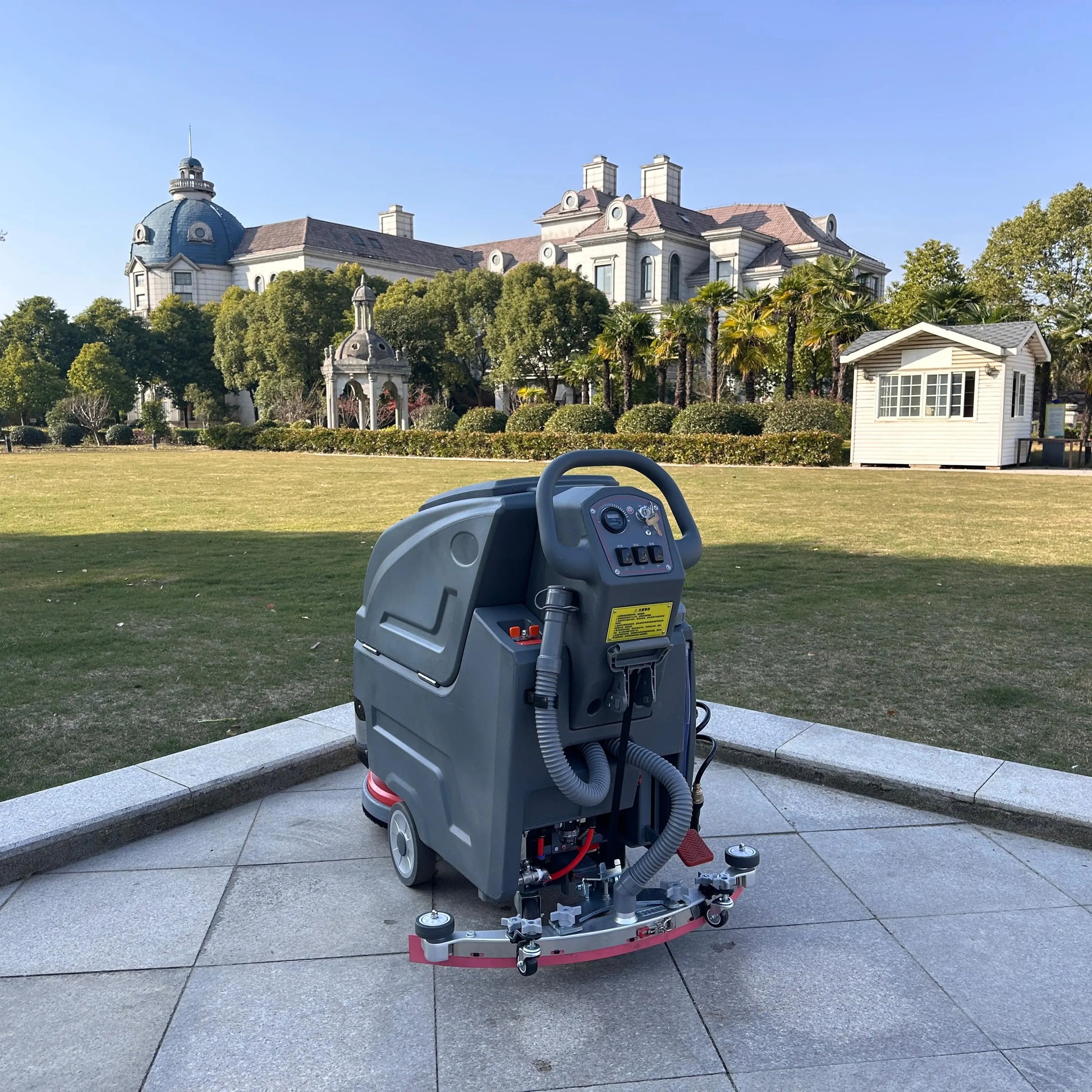

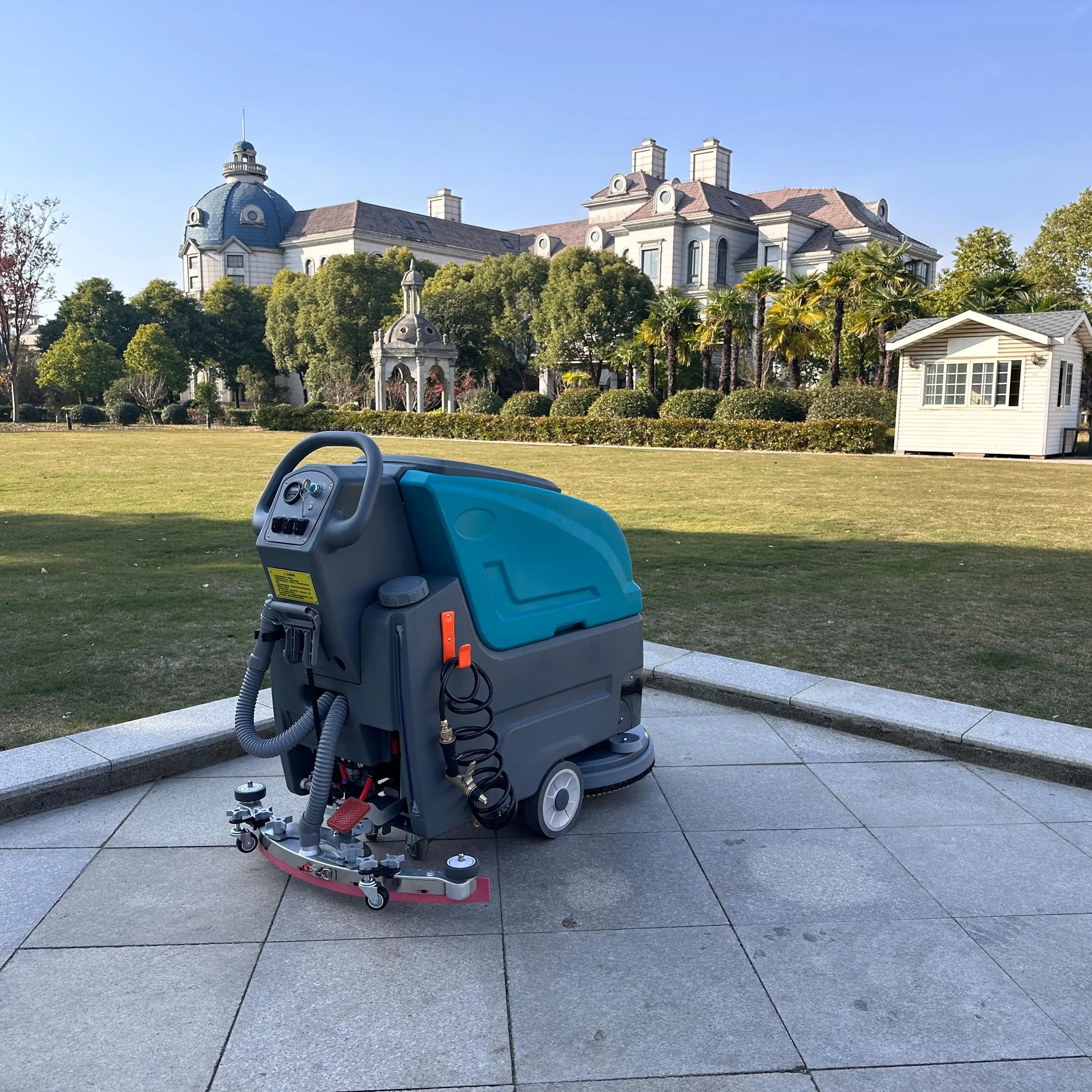

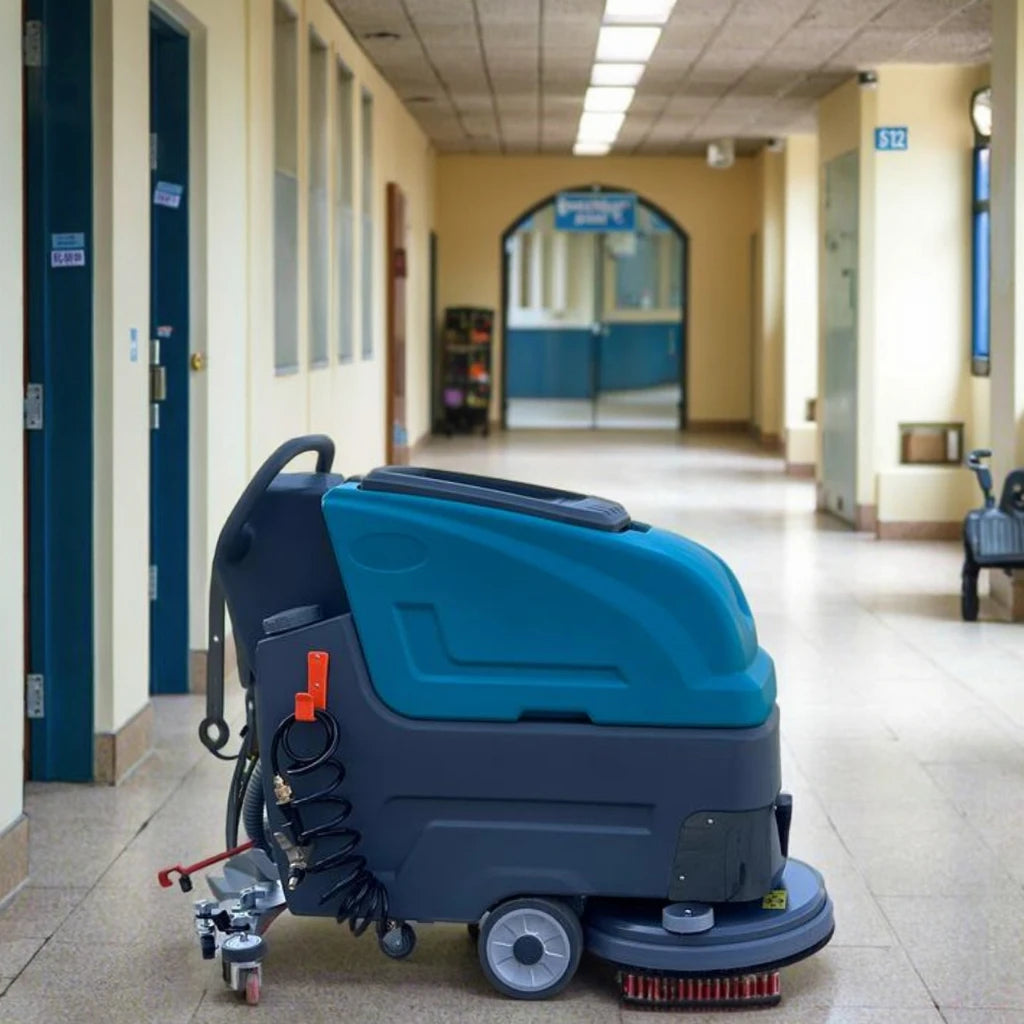

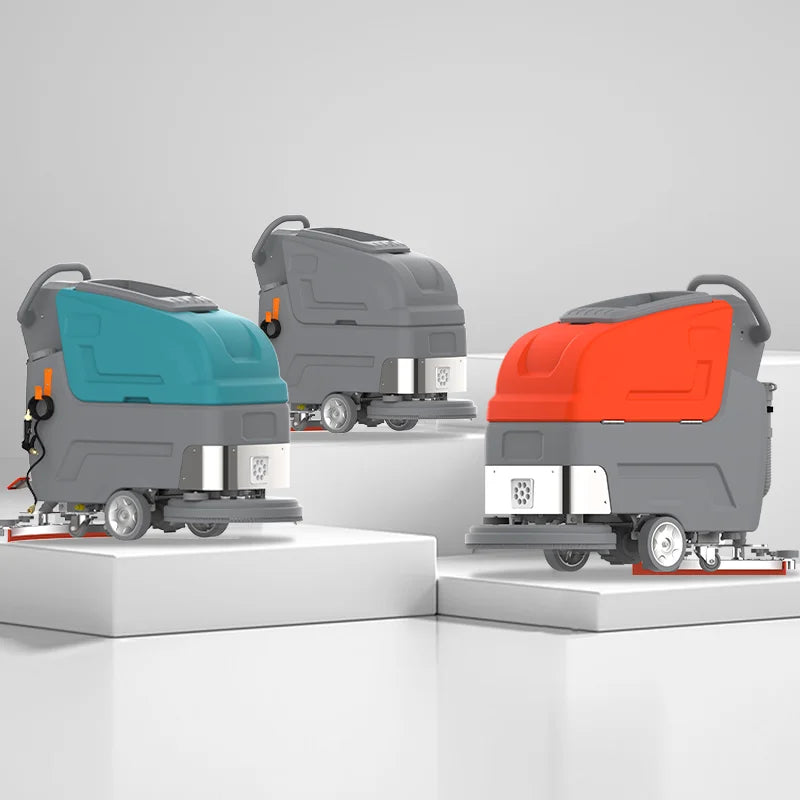

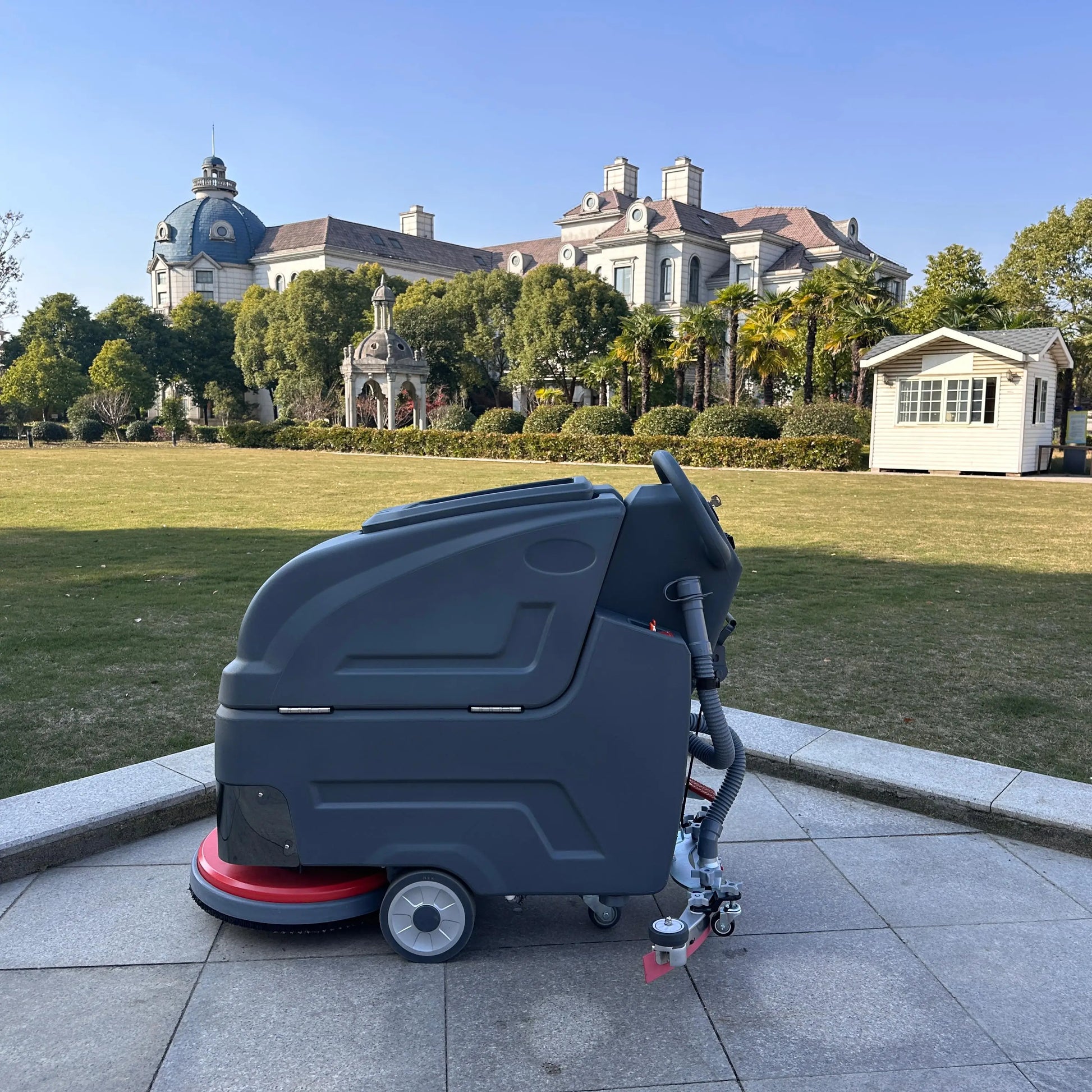

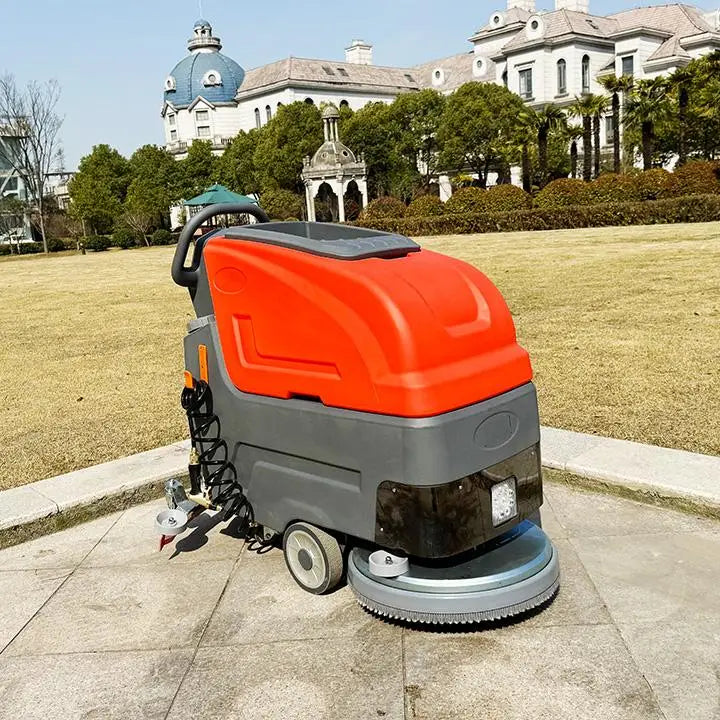

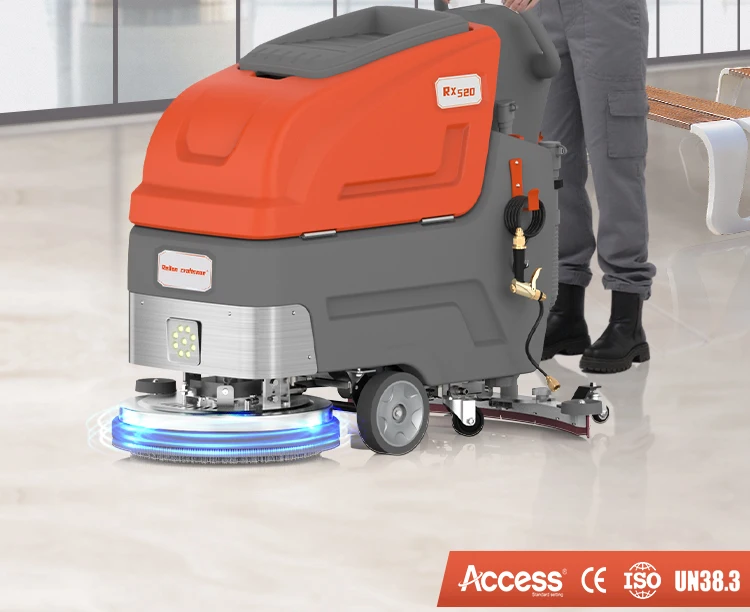

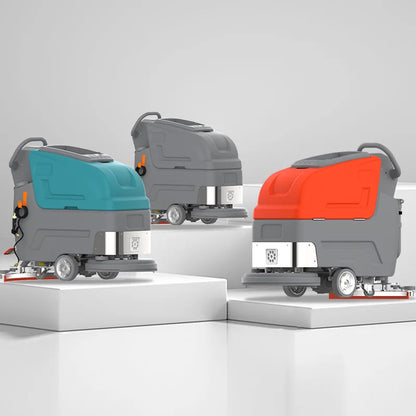

WALK BEHIND FLOOR SCRUBBER

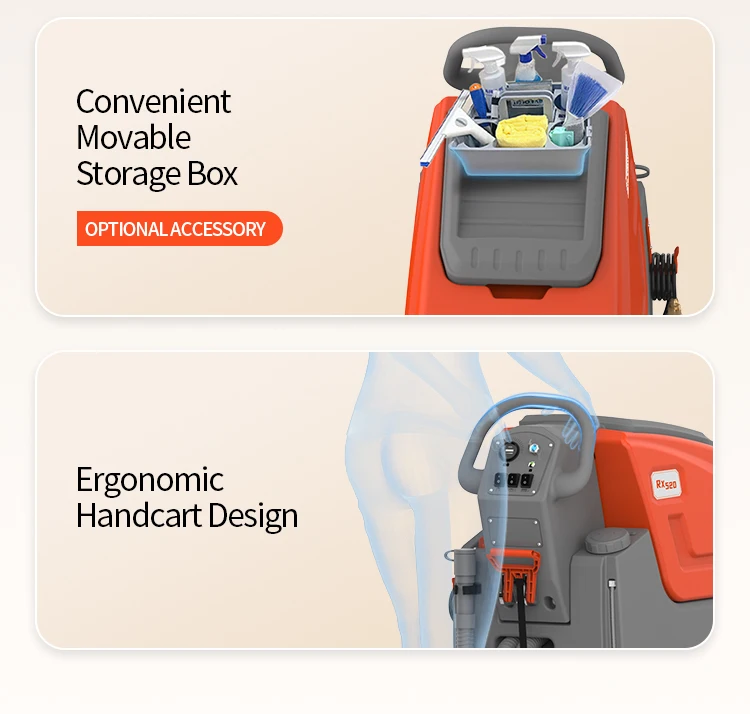

Three-in-one design: scrub, vacuum, and dry in one pass for maximum efficiency.520mm scrubbing width + 830 mm squeegee width for wider coverage. 65L clean water tank + 73L recovery tank reduce refill frequency, 24 V high-capacity battery provides 3-4 hours continuous working time. Imported suction motor and metal brush cover ensure durability and low noise.Compact body design for easy maneuvering in narrow spaces.Ergonomic handle and anti-skid rubber wheels for safe, comfortable operation.

Feature	Equipped with a 520 mm brush, 830 mm squeegee, and 65 L clean water tank, the compact design allows easy maneuverability.
Advantage	The large-capacity tanks and efficient suction system allow continuous cleaning of large areas with minimal interruptions.Low-noise operation makes it ideal for hospitals, shopping malls, and schools.
Benefit	Saves labor costs, improves cleaning efficiency, and ensures faster drying floors, enhancing the overall appearance of your facility.
Application Scenarios	Ideal for factories, warehouses, shopping malls, hospitals, schools, and parking lots
		Suitable for various surfaces including tiles, cement, and epoxy floors
		Perfect for places requiring frequent cleaning and a quiet working environment

FAR

1.Q: What kind of areas is the R-X520 floor scrubber suitable for?

A: The R-X520 is ideal for cleaning large flat areas such as shopping malls, warehouses, workshops, supermarkets, schools,hospitals, and parking lots.

2.Q: What types of floors can the R-X520 clean?

A: It works perfectly on tile, epoxy, marble, terrazzo, and concrete floors.

3.Q: What is the cleaning efficiency of one R-X520 unit?

A: The R-X520 cleans approximately 1800–2000㎡ per hour, greatly reducing labor costs.

4.Q: Is the R-X520 corded or battery-powered?

A: It is battery-powered with a high-capacity, maintenance-free battery that runs for 3–4 hours per charge.

5.Q: Is maintenance complicated?

A: Maintenance is easy—just clean the squeegee, brush, and recovery tank regularly and follow the charging instructions.

6.Q: Do you provide spare parts and after-sales support?

A: Yes, we supply original spare parts and full technical support, including video training and online guidance for bulk buyers.

7.Q: What’s the minimum order quantity (MOQ)? Can we customize the logo or color?

A: The standard MOQ is 1 unit. For bulk orders, logo and color customization are available.

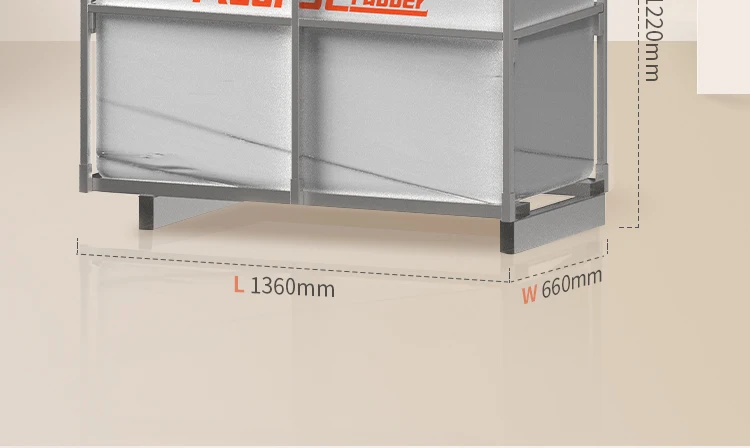

8.Q: How is the machine packed and shipped?

A: Each unit is packed in a strong wooden crate suitable for sea or land transportation to ensure safety during long-distance shipping.

9.Q: What is the lead time for delivery?

A: The normal lead time is 7–15 working days; bulk orders can be scheduled based on production arrangements.
