SPECIFICATIONS

Applicable door type: hollow door frame (concealed)

Applicable temperature: -20 ° C ~ +55 ° C

Application: public places

Brand Name: Keysecurity

Contact output: NO/NC/COM

Durable test: 100,000 times

Feature: Durable

Induction distance: 5-15CM (adjustable)

LED indication: blue (standby), green (trigger)

Maximum current: 3A/125-250VAC

Place of Origin: Guangdong, China

Product name: Waterproof Touchless Exit Switch

Standard panel: Zinc Alloy panel

Supply voltage: 12VDC to 24VDC

Type: security protection products

Products Description

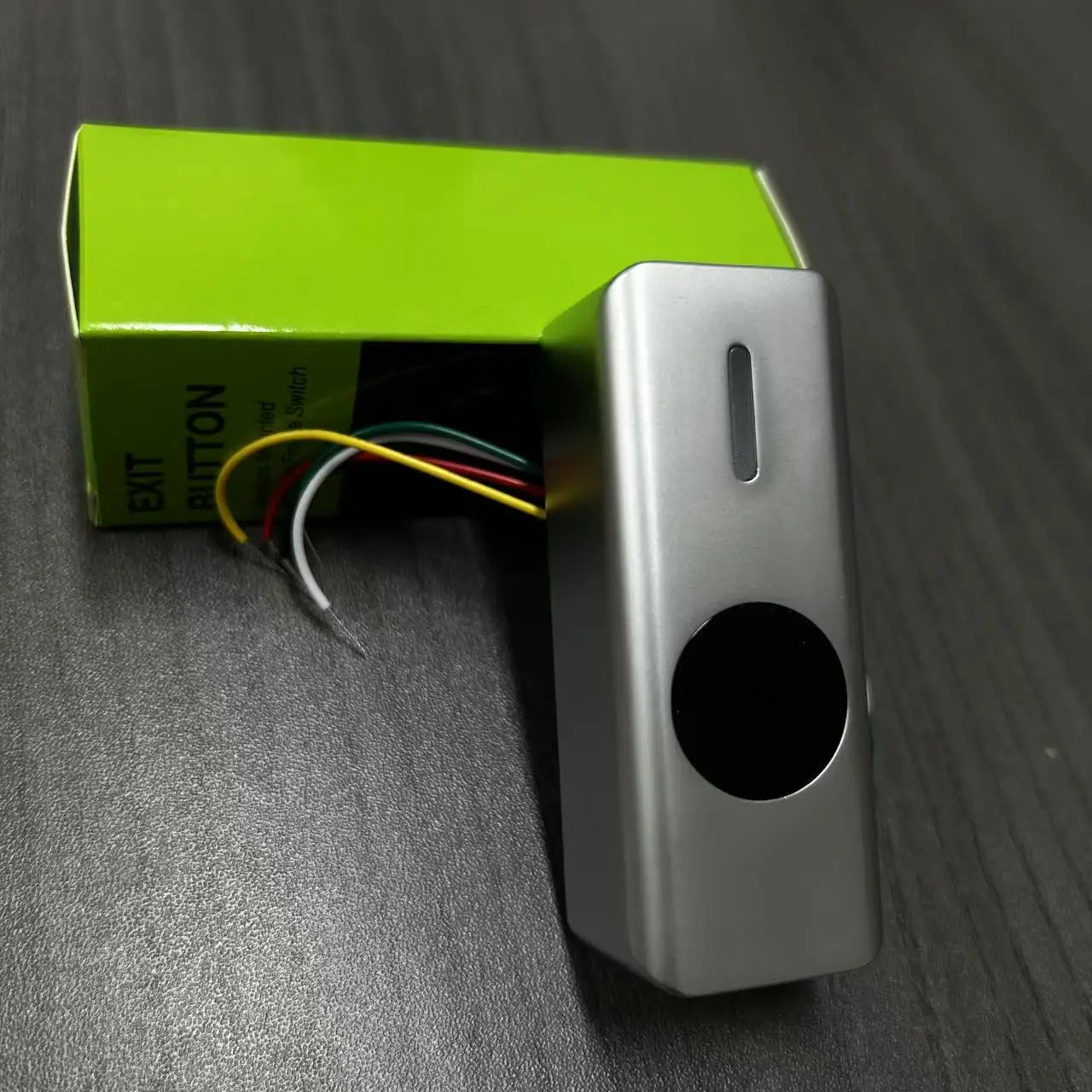

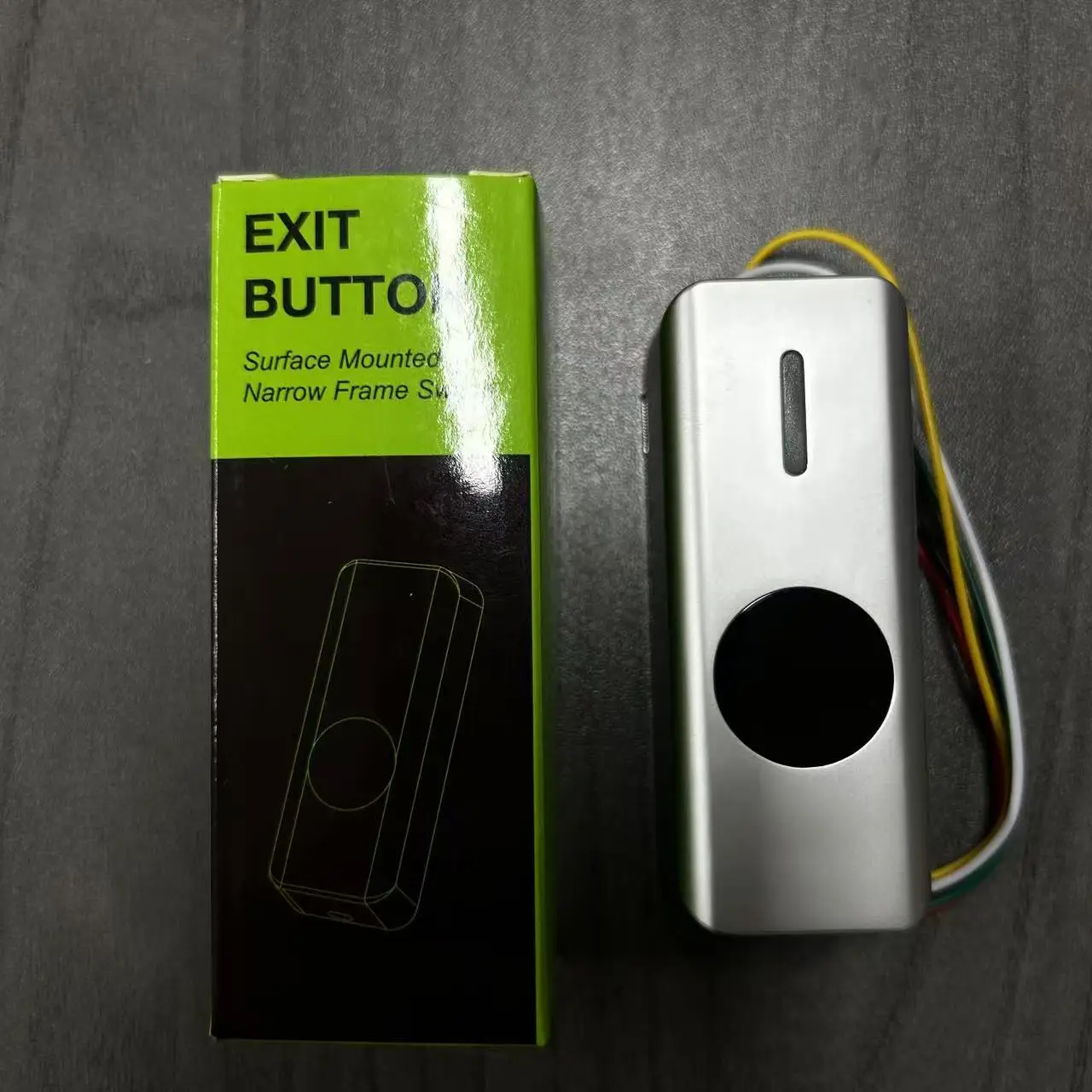

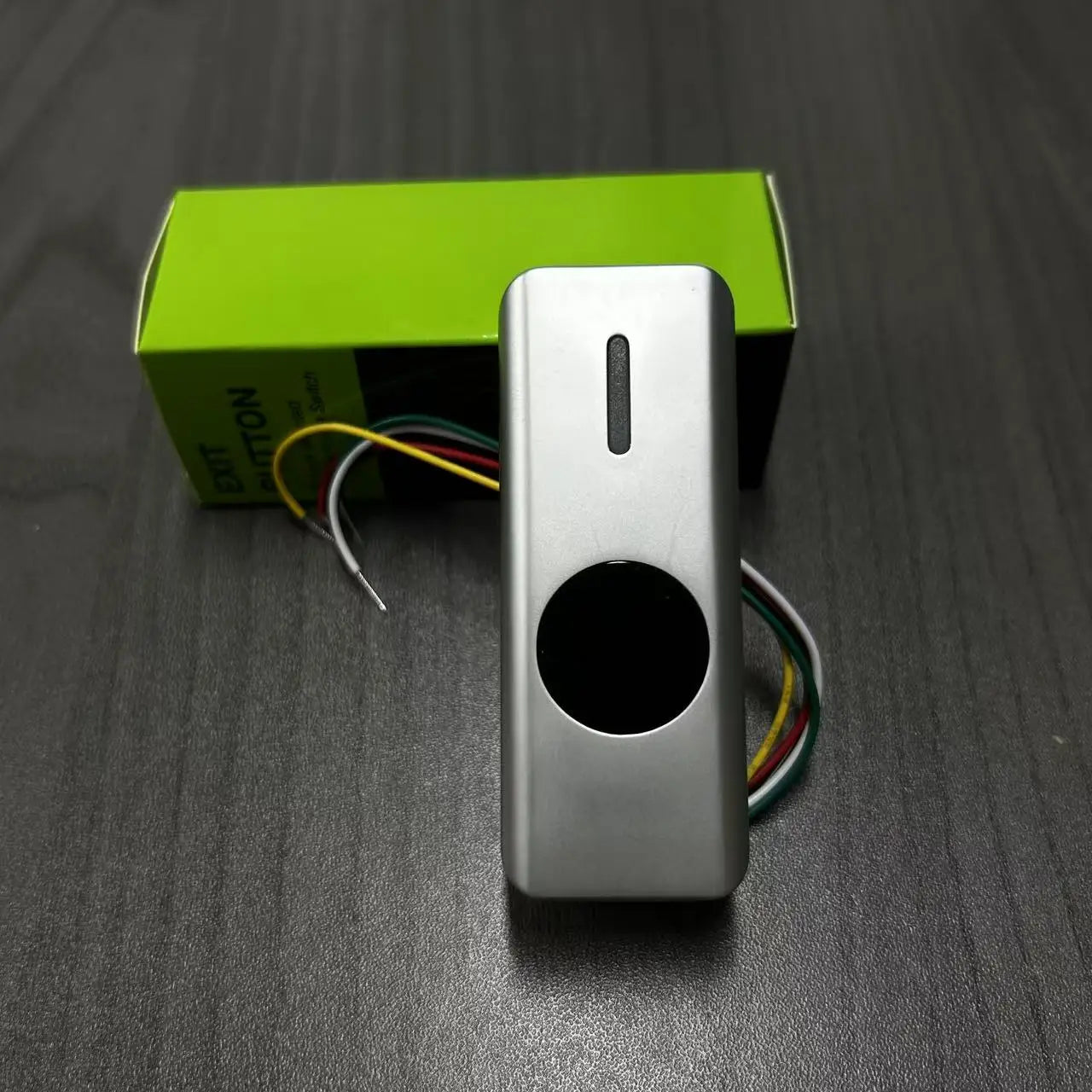

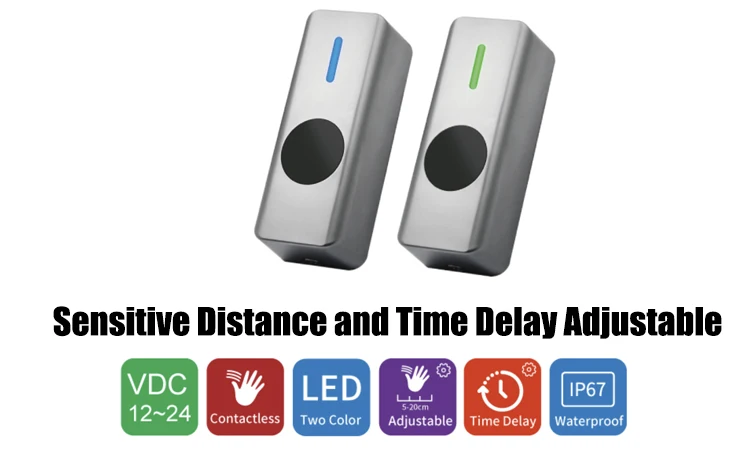

Waterproof IP67 Metal Case Touchless 12-24V Door Lock Access Control Release Switch Time Delay Output No Touch Exit Button

Feature:

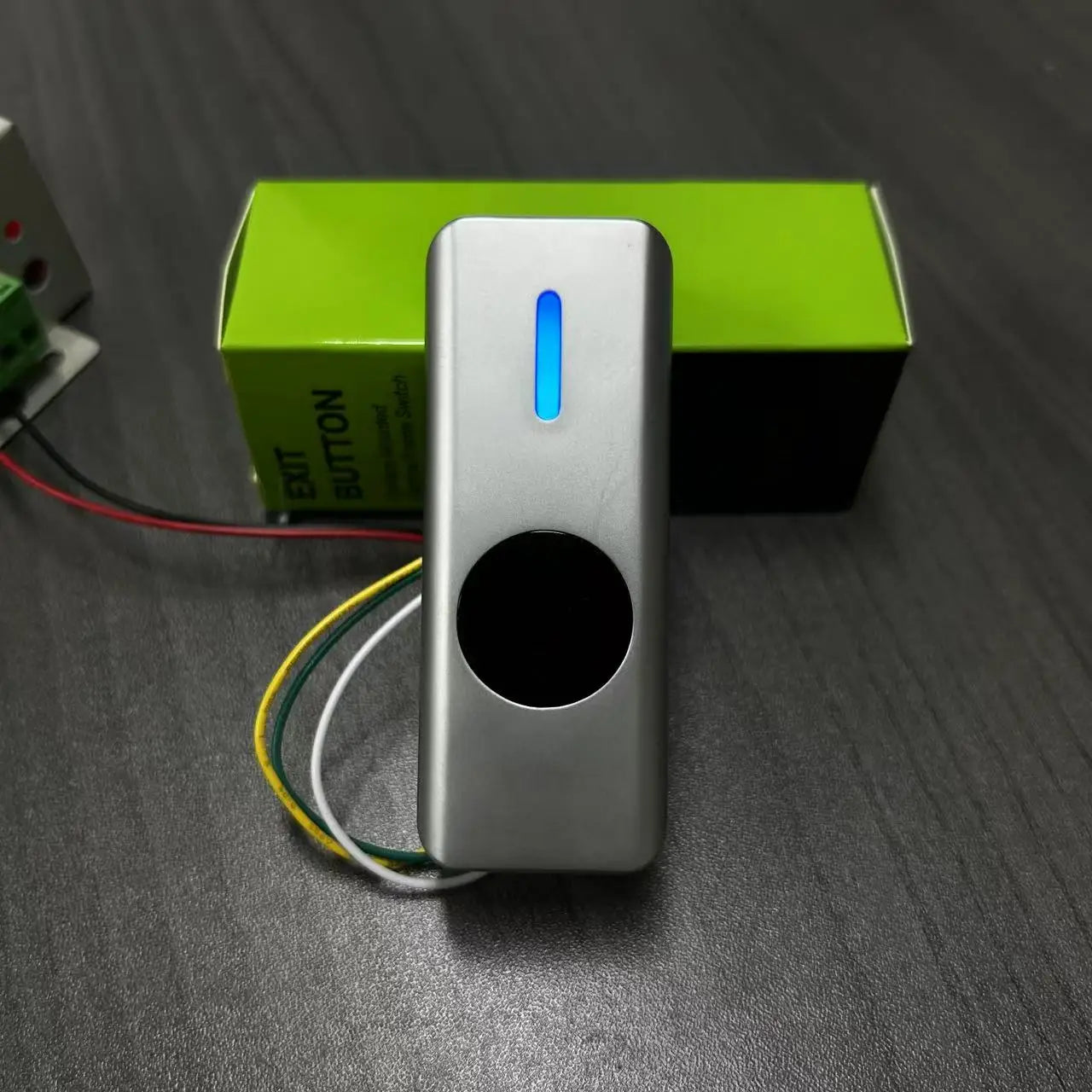

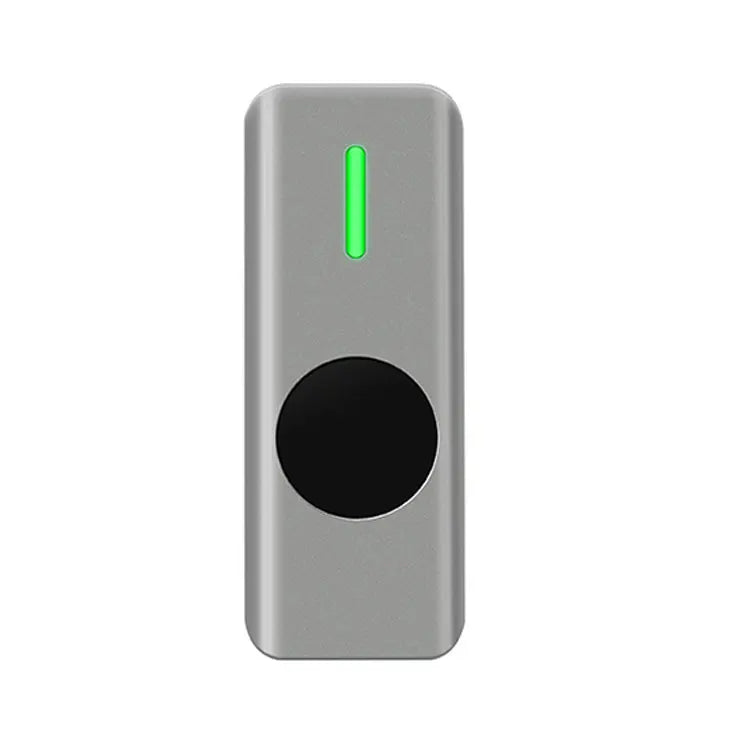

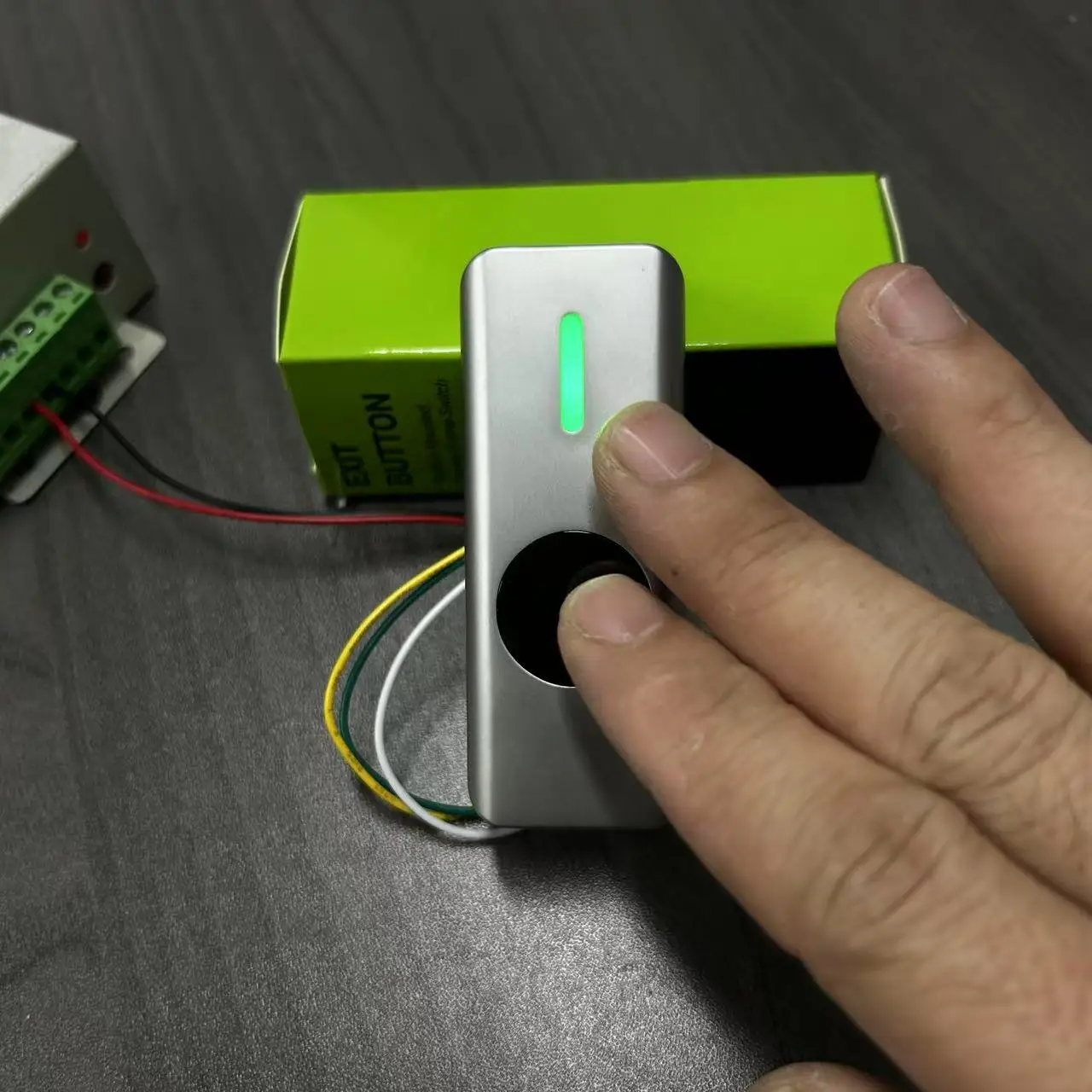

This is a touchless/ button, you just need to wave your hand in front of the device for it to activate. The led Light will show as green when it has triggered.

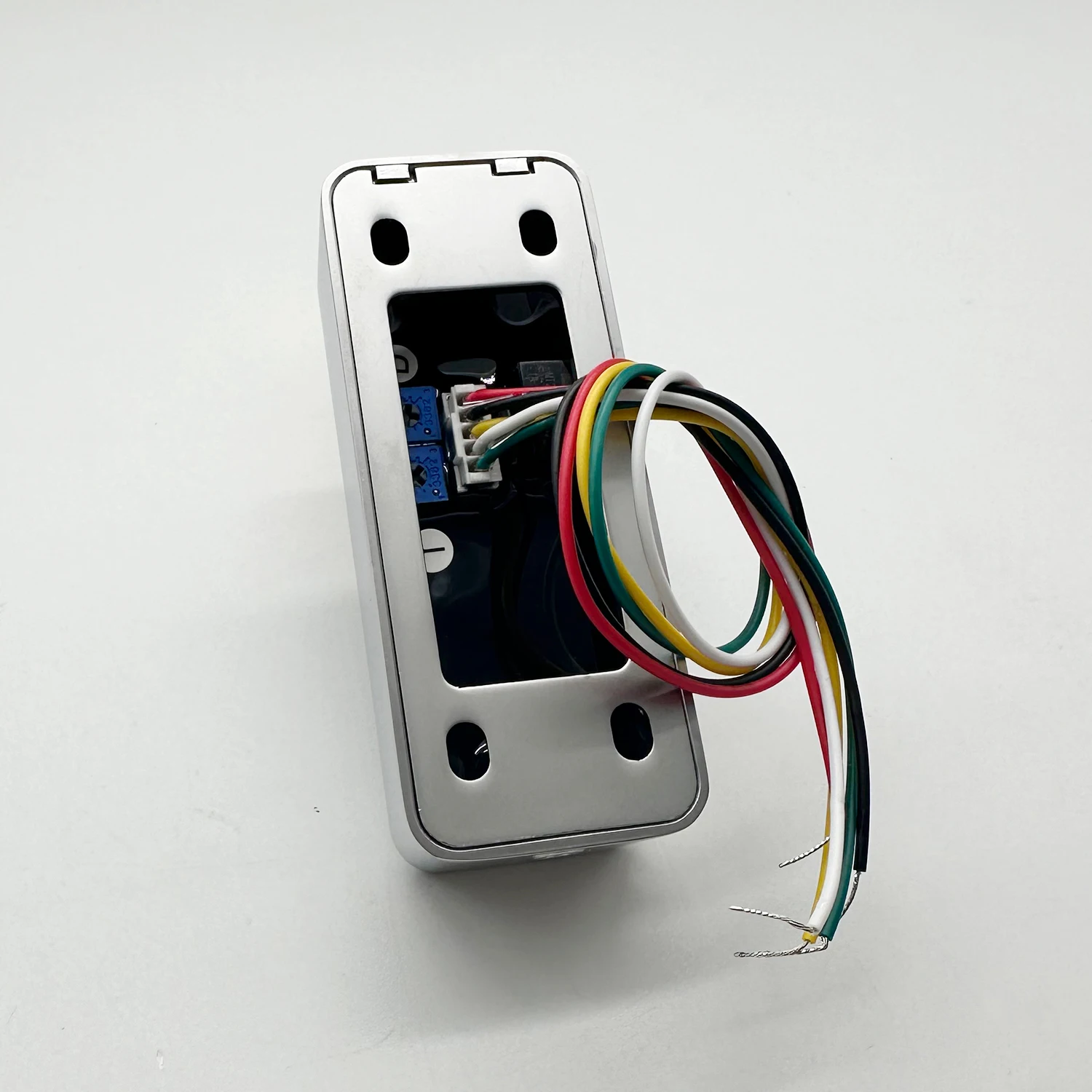

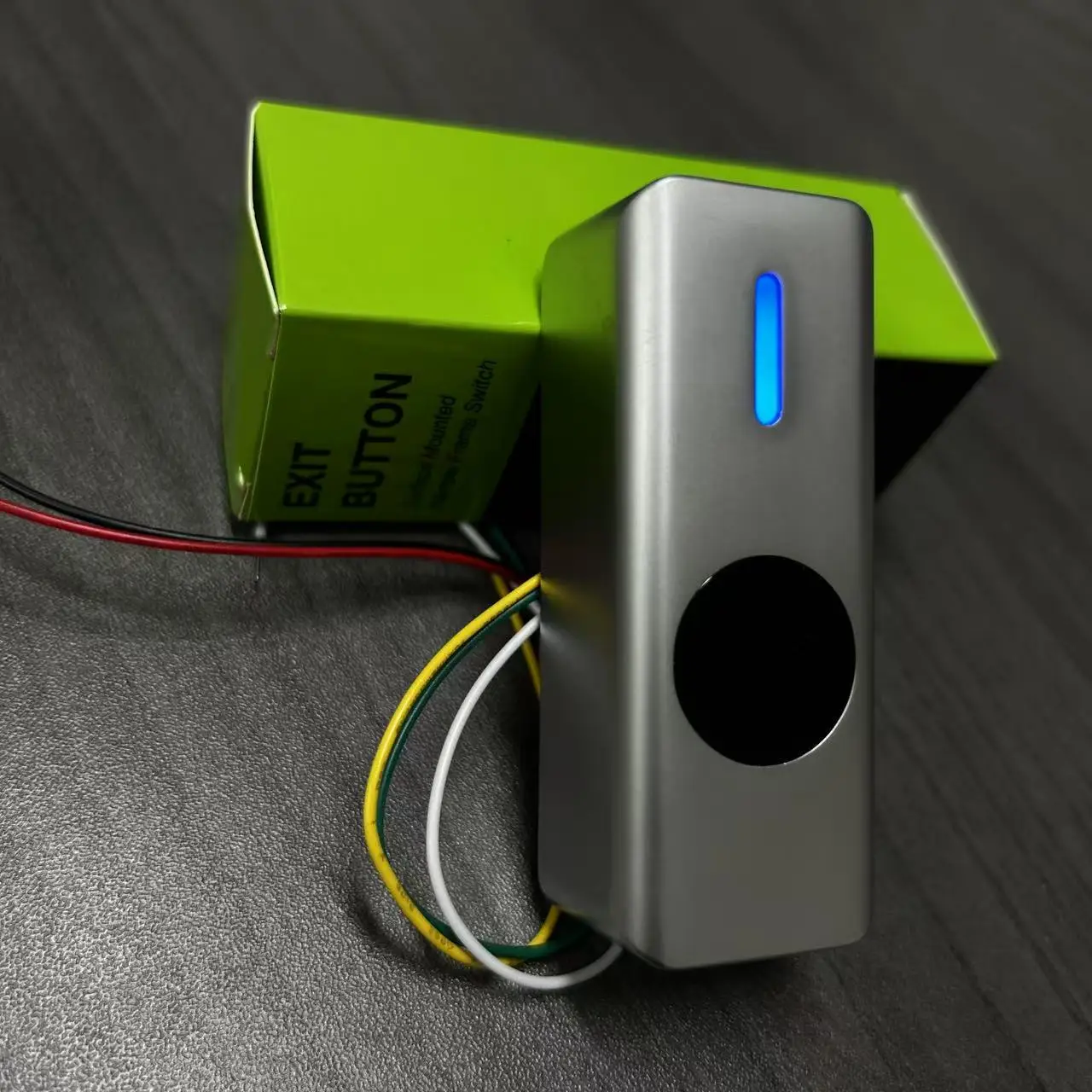

Touchless exit button is IR Sensor technology with 5 cables included for NO (Normal Open), NC (Normal Close) and COM (Common) and
+12V DC and GND, it has blue and green 2 colors LED indicator. Red color when standby ang Green color when actived.

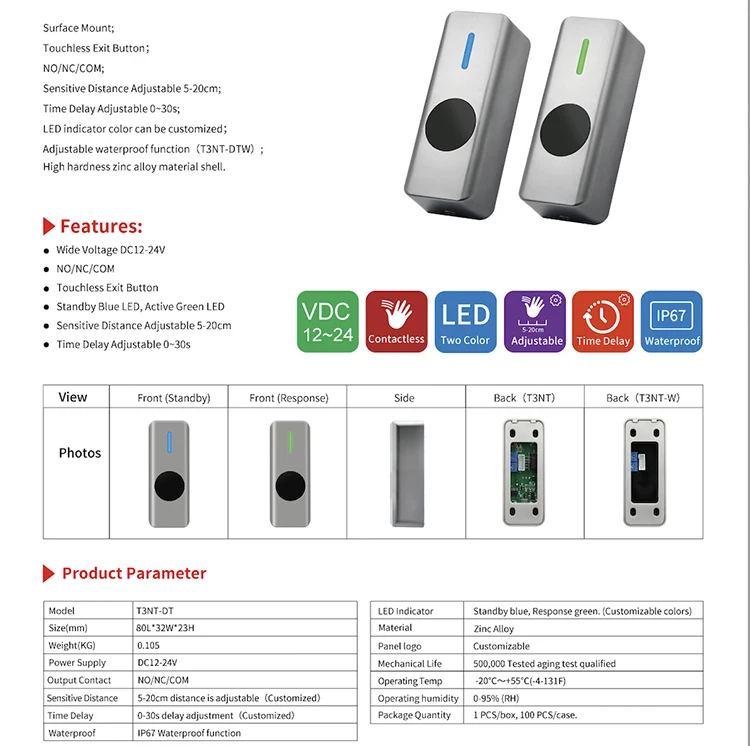

Product Paramenters

Model Number	K-T3NT-DTW
Product Name	Waterproof IP67 Metal Case Touchless 12-24V Door Lock Access Control Release Switch
Material	Zinc Alloy

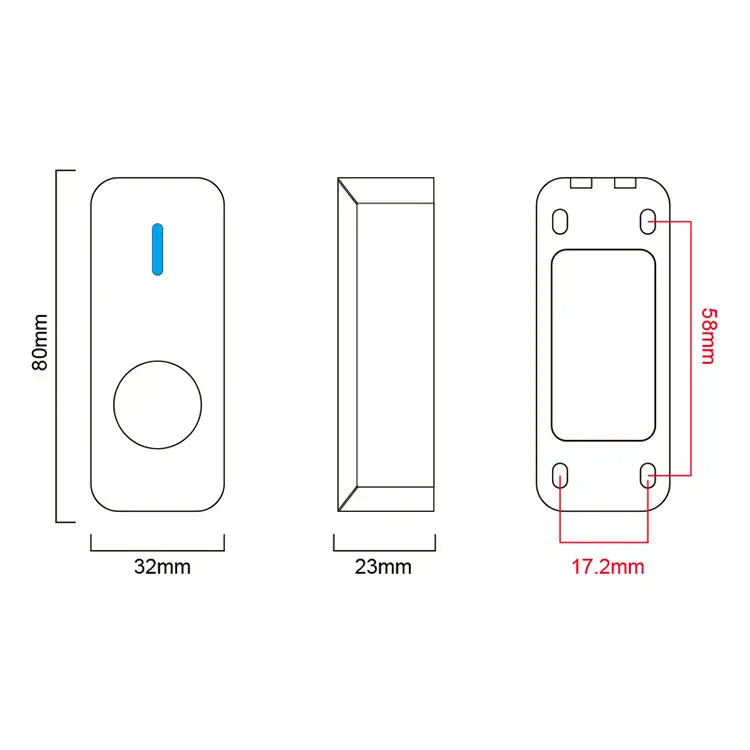

Product size	80*55mm
Power supply voltage	12-24VDC
Contact output	NO/NC/COM /LED
Maximum current	3A / 125-250VAC
Endurance test	100,000 times
Installation:	hollow door frame (surface installation)
Packing parameters	100pcs/52*43*32cm/10.5kg/ctn
