SPECIFICATIONS

After-sales Service Provided: Field maintenance and repair serviceCirculating water cooling

Brand Name: APIE

Machinery Test Report: Provided

Max amplitude: 16mm(18mm/17mm/16mm)

Max rotation speed: 1450rpm

Outer diameter: 377mm

Place of Origin: Jiangsu, China

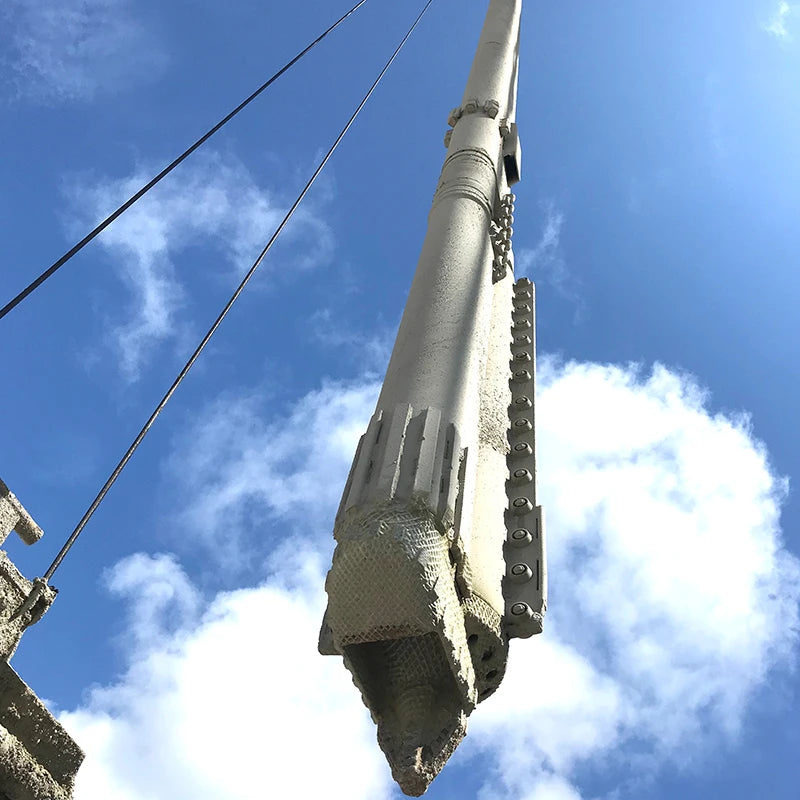

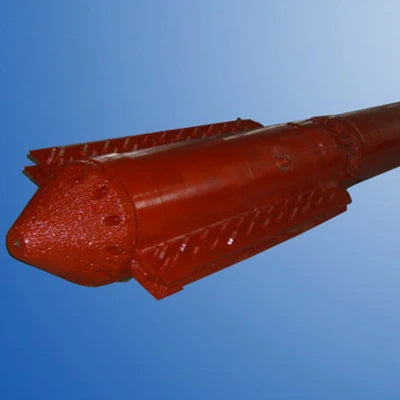

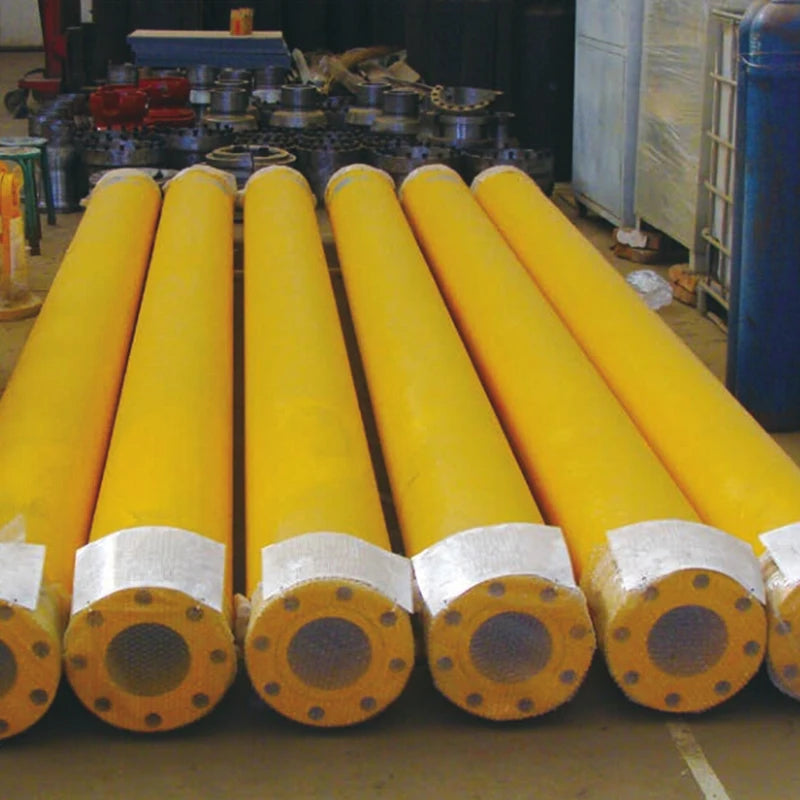

Product name: Vibroflot

Rated current: 148A/195A/255A/356 A

Vibration power: 175kN/195kN/195kN/195kN

Video outgoing-inspection: Provided

Warranty: 1 Year

Working pile diameter: 700-1200mm

Vibroflot Model	AP426-75	AP426-130	AP426-150	AP426-180
Motor Power	75kW	130kW	150kW	180kW
Rate Current	148A	255A	290A	350A
Max.Speed	1450r/min	1450r/min	1450r/min	1450r/min
Max. amplitude	16mm	17.2mm	18.9mm	18.9mm

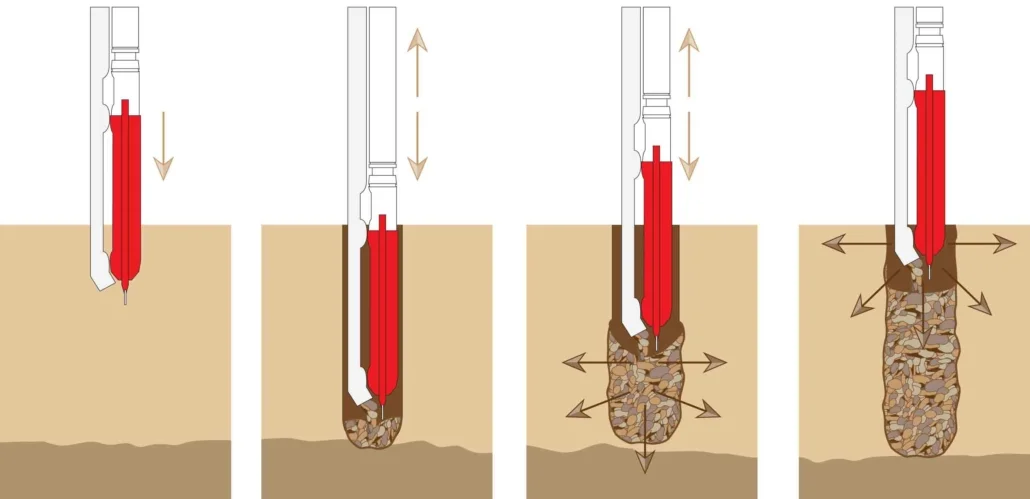

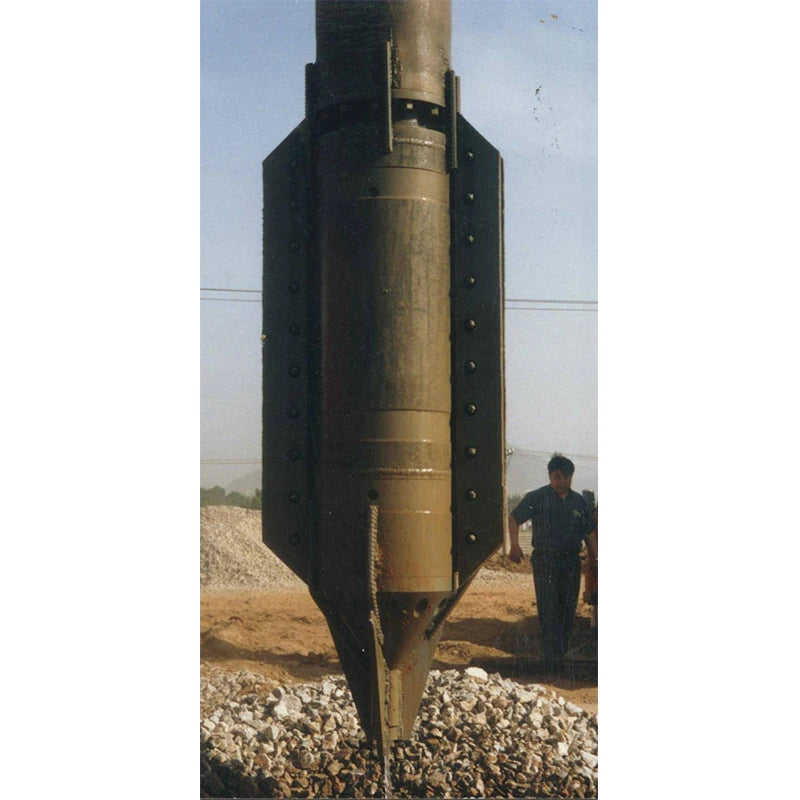

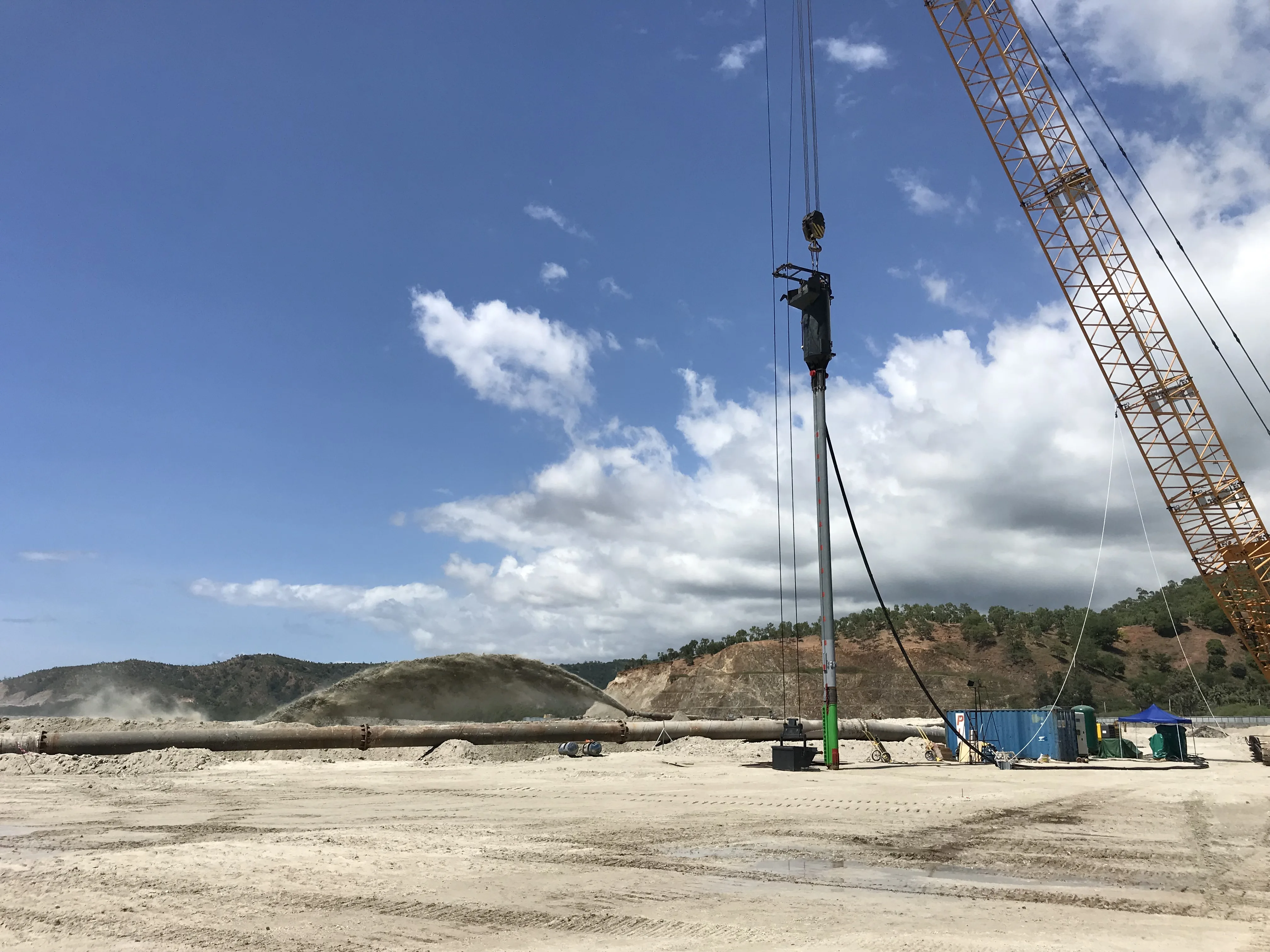

In the method of bottom feed vibroflotation, there is a gravel reservoir and gravel tube on the vibroflotation probe. After the probe is vibrated into the ground to the desired depth, with the help of compressed air, it is drawn up slightly and the gravel in the reservoir is fed into the generated gap and is compressed by the vibration. This process is repeated and the stone column is produced. In this method, the diameter of the stone column may vary depending on the resistance of the neighbouring ground. The compression of the ground is tracked by the monitor on the hydraulic power unit.
